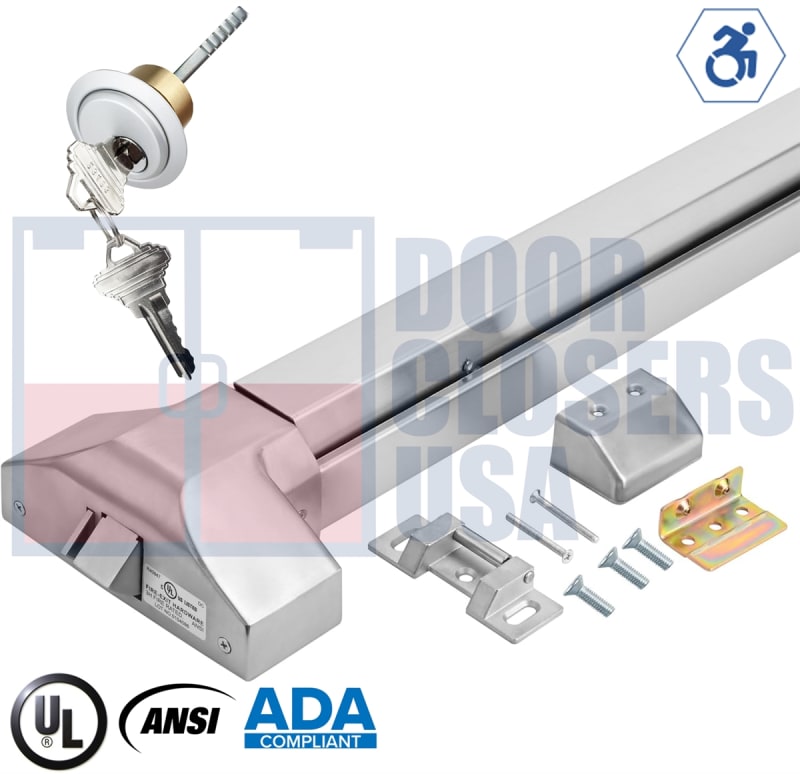

Entry Systems ES4 Rim Exit Device with Outside Rim Cylinder - Fits 40" to 48" Medium Stile Hollow Metal or Wood Doors - Aluminum Finish - Schlage C Keyway, Dogging, 2-3/4" Backset, 5/8" Stainless Steel Latch - Grade 1, UL Listed

The Entry Systems ES4 with Outside Rim Cylinder is a Grade 1 wide-door rim exit device designed for medium stile commercial doors ranging from 40" to 48" wide. An exterior Schlage C keyway rim cylinder allows controlled access from the outside.

This non-fire-rated model includes Allen key dogging for hold-open convenience. It features a 5/8" stainless steel throw latch with deadlatch, a 2-3/4" backset, and a 4-1/2" minimum stile.

• Model: 44E0-4 (Rim Exit Device with Rim Cylinder)
• Door Width: 40"–48"
• Cylinder: Schlage C keyway rim cylinder
• Dogging: Yes (Allen key)
• Latch: 5/8" stainless steel throw latch with deadlatch
• Backset: 2-3/4"
• Finish: Aluminum (AL)
• Design: Non-handed, field reversible
• Compliance: ANSI/BHMA A156.3 Grade 1
• Listings: UL Listed
