R7483 5" x 2-1/4" Door Closer Installation Instructions

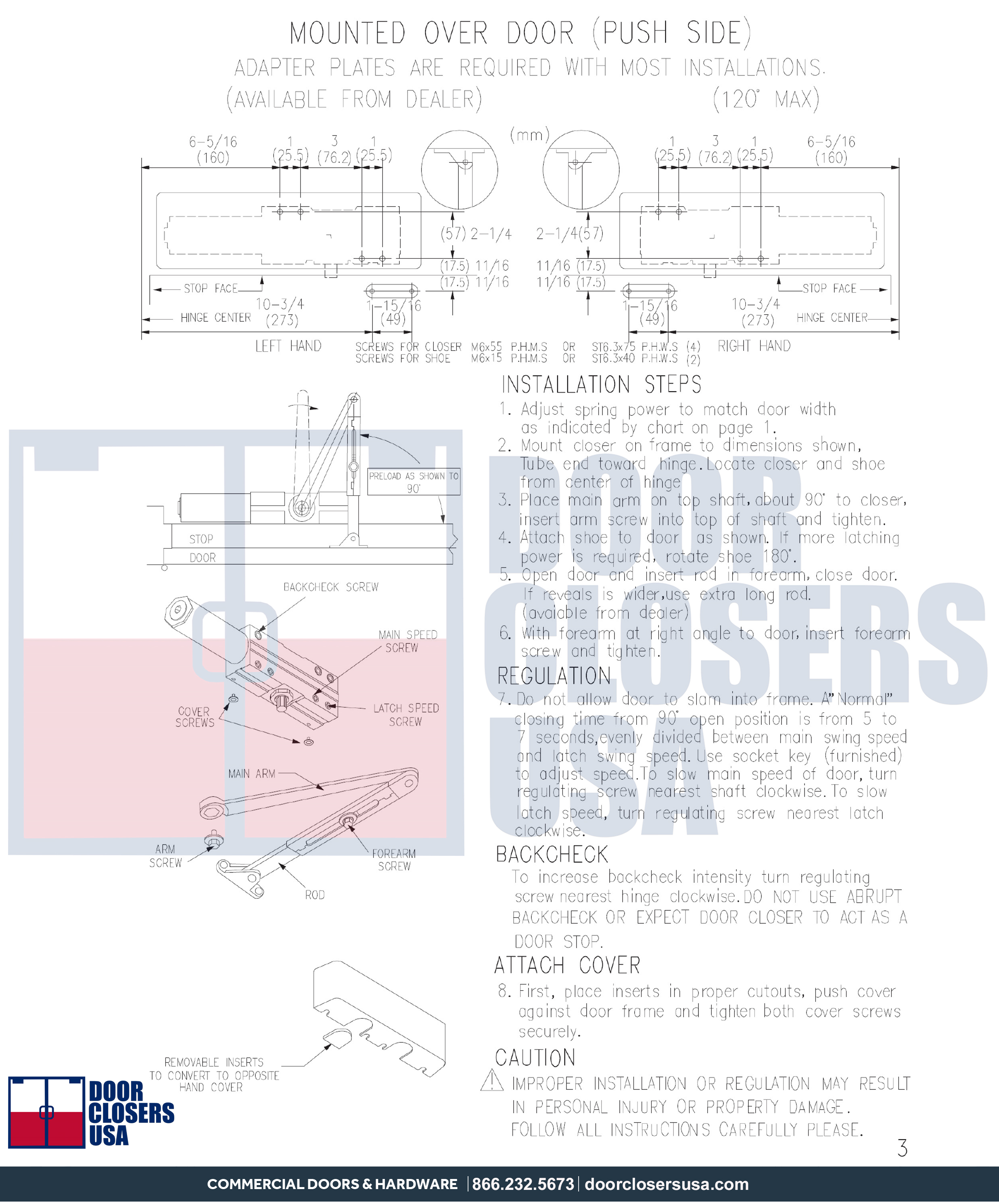

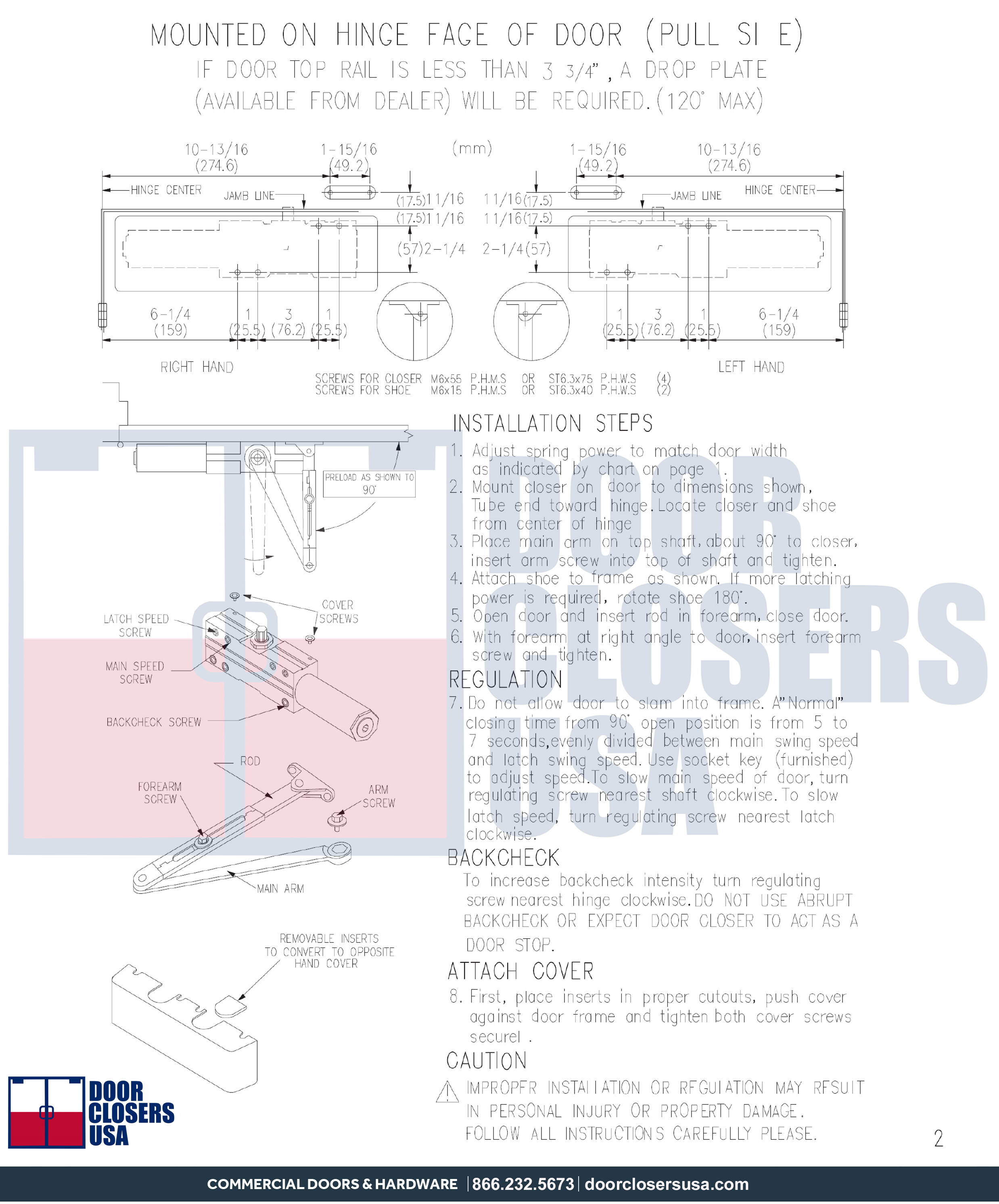

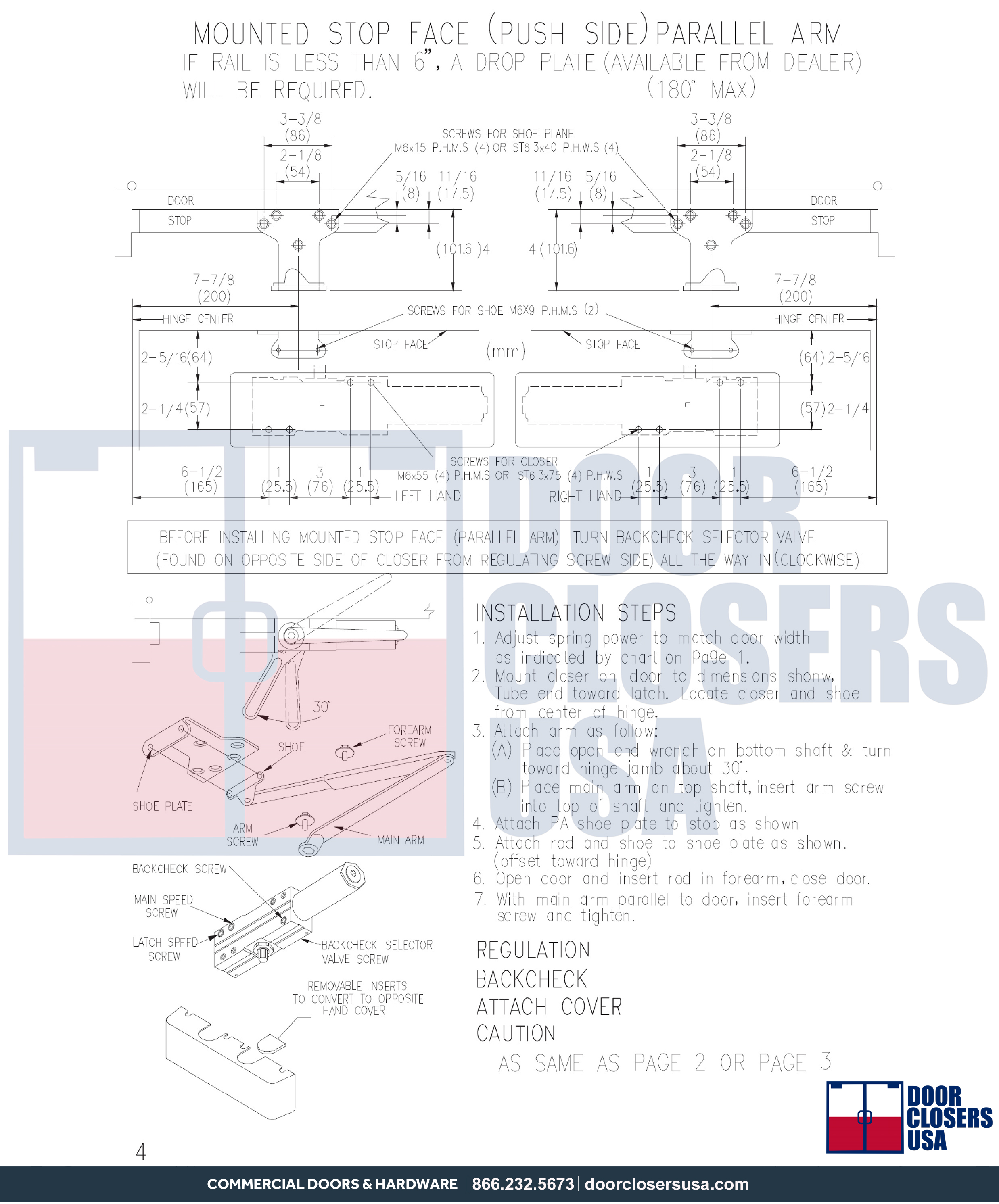

INSTALLATION STEPS

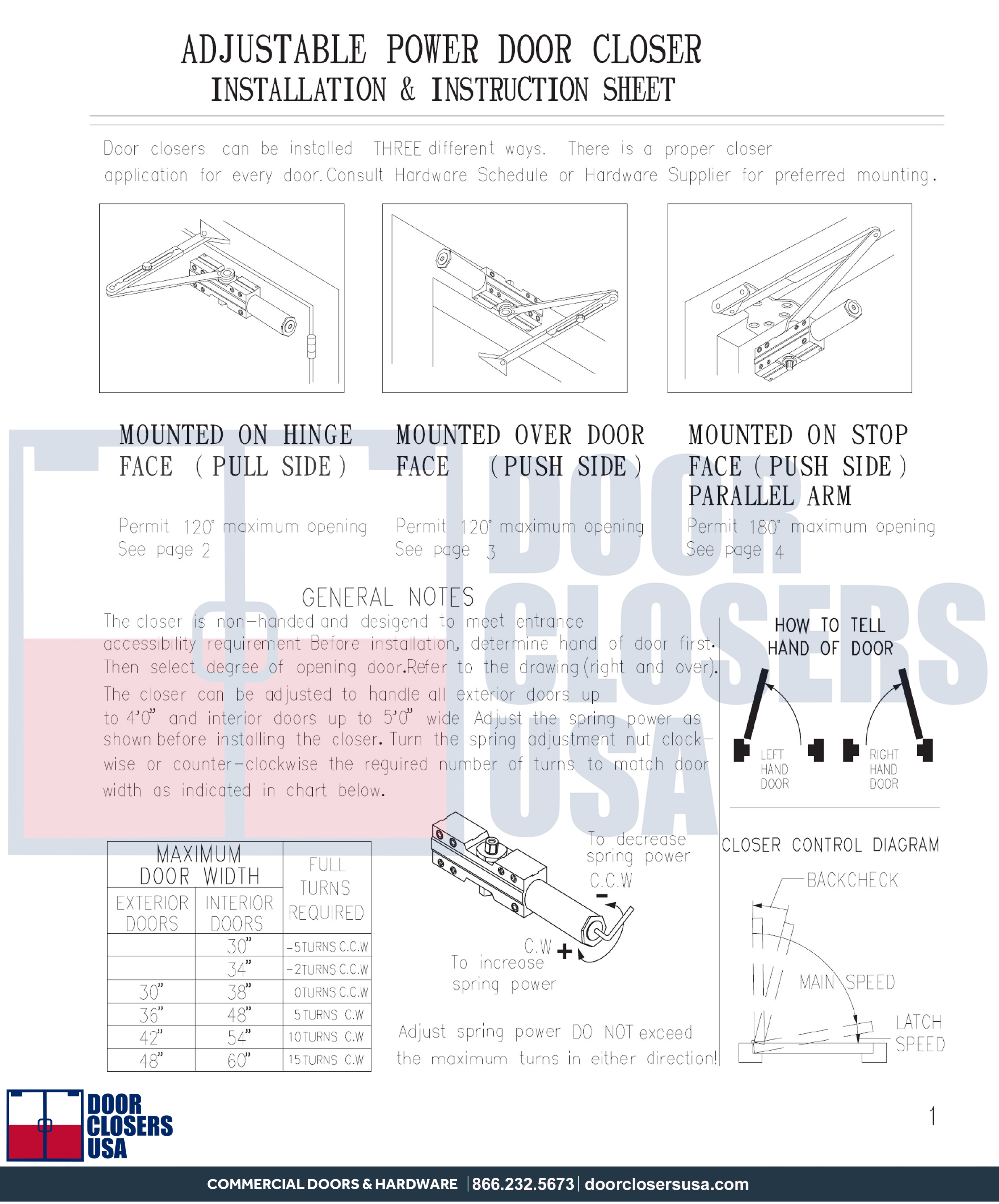

1. Adjust spring power to match door widthas indicated by chart on Page 1.
2. Mount closer on door to dimensions shown.Tube end toward latch. Locate closer and shoe from center of hinge.
3.Attach arm as follow:
(A) Place open end wrench on bottom shaft & turntoward hinge jamb about 30 degrees.
(B) Place main arm on top shaft, insert arm screwinto top of shaft and tighten.
4. Attach PA shoe plate to stop as shown
5. Attach rod and shoe to shoe plate as shown. (offset toward hinge)
6. Open door and insert rod in forearm. close door.
7. With main arm parallel to door, insert forearmscrew and tighten.
