What Is A 63Z0 Door Closer?

What Is A 63Z0 Door Closer?

A 63Z0 door closer is a hydraulic door closer designed for commercial duty doors. 63Z0 door closers can be used on both outswing and inswing doors and provides a safe and smooth closing cycle. 63Z0 door closers are most commonly found on storefront entrance doors such as gas stations, banks, and convenience stores.

Identifying 63Z0 Door Closers

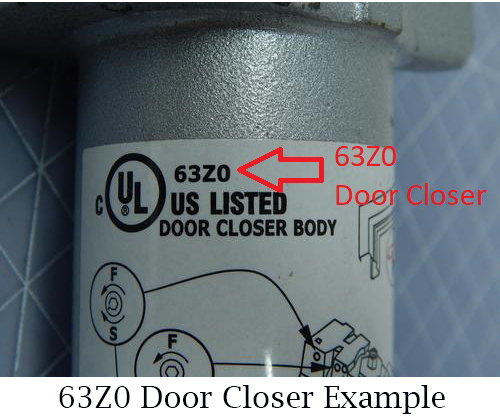

All 63Z0 door closers are labeled somewhere on the door closer arm or body. If the door closer has a cover, the label may be on it. If not, remove the door closer cover and check on the door closer body. If a 63Z0 model label is not on the door closer then we recommend our article "How To Replace Any Door Closer" which explains how to replace an unidentifiable door closer. The picture below shows a door closer with a 63Z0 label.


63Z0 Door Closer Features

63Z0 door closers can be installed standard mount, top jamb, or parallel mount depending on your door application. Since most 63Z0 door closers are used on aluminum storefront entrance doors standard mount or top jamb are the most popular mounting methods. The 63Z0 door closer is a rack and pinion door closer design, which allows it to be very durable on any storefront entrance door.


63Z0 Door Closer Design

The 63Z0 door closer comes standard with a main closing speed valve and a latching speed valve. The door closer is designed for smooth closing and will not slam closed if properly adjusted. 63Z0 door closers also have the option for a backcheck adjustment valve which will allow the door to enter a slow speed range as the door approaches the full open position. The backcheck function is recommended for environments with abusive traffic or high winds.

63Z0 Door Closer Accessories

The 63Z0 door closer is available with the hold open friction arm, which allows the 63Z0 to keep the door in the full open position when desired. This option is a great feature for convenience stores and gas stations where the doors need to be propped open for inventory restocks and heavy customer traffic.

63Z0 Recommended Door Sizes

63Z0 door closers can be installed on a variety of commercial door sizes ranging from 36" to 48" wide doors. 63Z0 door closers are very popular on storefront aluminum doors, which are typically 36" wide doors.

63Z0 Door Closer Finishes

63Z0 door closers come in aluminum or dark bronze finishes.

63Z0 Door Closer Applications

  • Gas Station Entrance Doors
  • Convenience Store Entrances
  • Public Restrooms
  • Banks
