3/4 in Top & Intermediate Pivot Kit

*Generic Image, Refer to Description for Model and Finish

Extra Heavy Duty 3/4 in Offset Pivot Kit (For Doors Up To 300lbs), Includes Top Pivot, (2) Intermediate Pivots, and Hardware (Choose Finish)

Door Closers USA
List Price: $936.50
$
Savings: $

Item Return Policy: Assembled Per Order, Non-Returnable
Choose your options:
Choose Hand
Choose Hand:
Finish (OP34)
Finish (OP34):
Product Code: RANKEN-34TP2IPKIT
Usually Ships in 24 Hours
This product qualifies for FREE SHIPPING!

Ranken Extra Heavy Duty 3/4" Offset Pivot Kit (For Doors Up To 300lbs), Includes Top Pivot, (2) Intermediate Pivots, and Hardware (Choose Finish)

The Ranken 3/4" offset pivot set is perfect for all commercial doors up to 600 lbs. This pivot system can be used on interior or exterior hollow metal steel doors, architectural wood doors, or storefront aluminum doors. The Ranken pivot kit can be used on door widths up to 4'-0" (48"). The bottom pivot set is designed to attach directly to the floor.

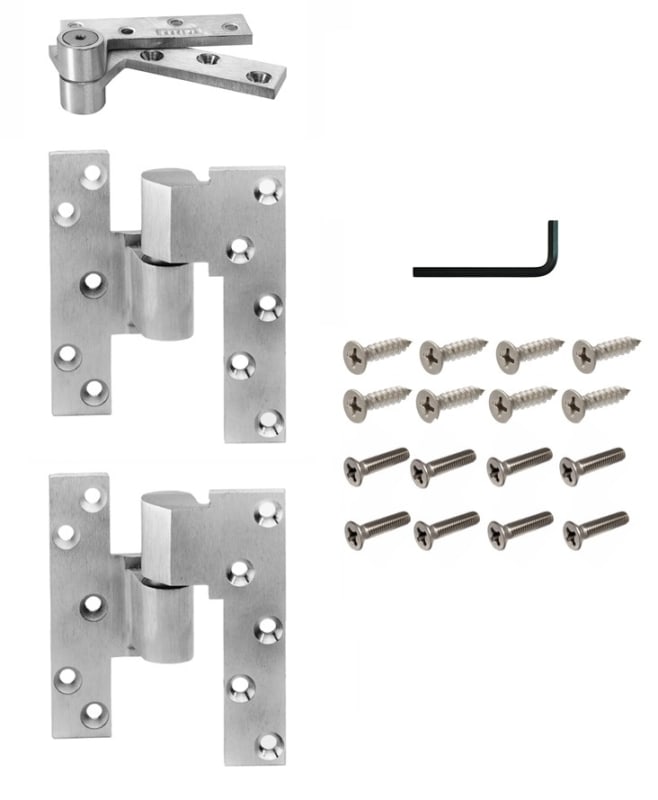

Ranken 3/4" Offset Pivot Kit Includes:
  • (1) Each Heavy Duty 3/4" Offset Top Pivot
  • (2) Each Heavy Duty 3/4" Offset Intermediate Pivot
  • Hardware for wood or metal door installation
Ranken Features:
  • Ranken base material is non-ferrous
  • 3/4" offset (measured from centerline of pivot to face of door)
  • Door edges should be beveled 1/8"
  • Ranken bottom pivot designed for floor mount installation
  • Ranken top pivot designed for mortise installation in top of door frame
  • Ranken intermediate pivot should be used with doors 60" to 90" in height. An additional intermediate pivot should be added for every additional 30" in door height.
  • 3/16" to 3/4" vertical height adjustment after installation
  • 180 degree door swing
  • Wood and machine screws included
  • For doors up to 4'-0" (48") in width
  • For doors up to 8'-0" (96") in height
Ranken Available Finishes
  • (626) Satin Chrome
  • (613) Dark Bronze
  • (605) Bright Brass
  • (606) Satin Brass
  • (612) Satin Bronze
