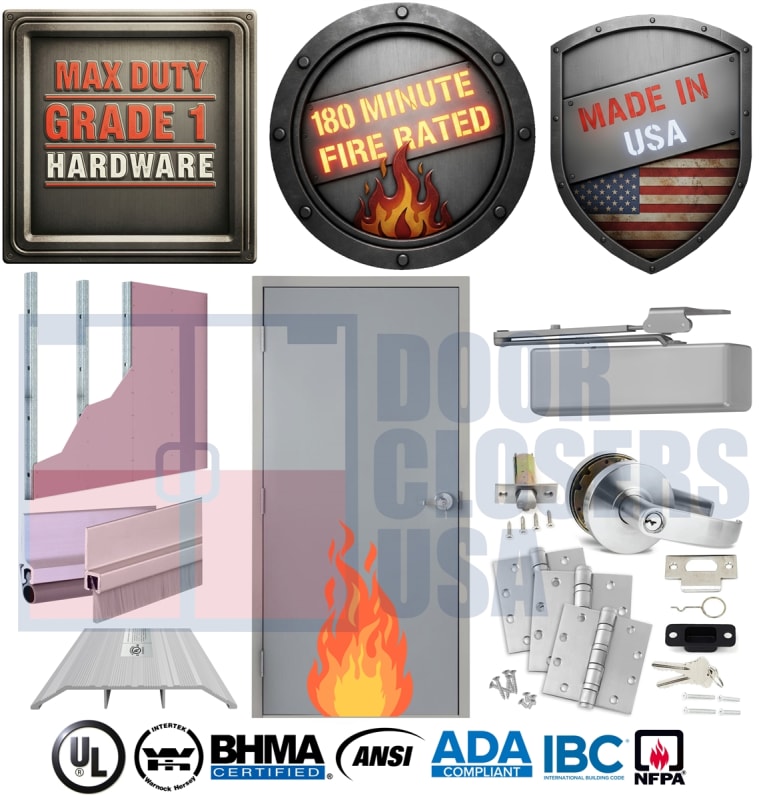

What’s Included (Turnkey)

• Door Slab: 36" x 84", LHR (Left Hand Reverse), 18-gauge galvannealed steel skins, prime painted for field finish.
• Fire-Rated Core: Engineered fire-rated core qualified for 3-hour assemblies.
• Fire-Rated Frame:Welded together, punch & dimple profile for rigidity and precise hardware alignment.
• Existing-Opening Attachment: Frame supplied with anchors for metal studs and self-drilling metal stud screws for fastening into the existing stud wall.
• UL Listed Grade 1 Hardware Package: fire-rated ball-bearing hinges, Grade 1 fire-rated lockset, fire-rated closer; strike and silencers factory prepped. (Exit device available by request.)
• Exterior Sealing (if specified): Perimeter smoke/fire/weather seals and threshold coordinated to listing and exposure.
• Documentation: UL/cUL labels and submittals to support inspection.

Compliance & Certifications

• 180 Minute (A Label, 3 Hour) door & frame assembly tested to NFPA 80.
• UL/cUL Listed complete system (door, welded frame, and listed hardware set).
• ADA & IBC alignment: clear width, approach, operable parts, and closer force/speed when adjusted properly.
• ANSI/BHMA Grade 1 hardware for durability and smooth inspection.

Important: Rating and labels apply only when supplied and installed as a complete labeled assembly per UL procedure and local AHJ requirements.

Door Construction

• Size & Handing: 36" x 84", LHR (Left Hand Reverse).
• Skins: 18-gauge galvannealed steel (A40/A60), prime painted.
• Core: Fire-rated core for A Label assemblies.
• Edges & Reinforcements: Interlocked edges; reinforcement plates at hinges, lock, and closer.
• Exterior Readiness: Pair with specified threshold and weatherstripping for exposure to the elements.

Frame & Anchoring – Existing Exterior Metal Stud Opening

• Welded fire-rated frame delivered welded together for squareness and stability.
• Punch & dimple profile for strength and consistent reveals.
• Anchors for metal studs with supplied self-drilling screws for fastening into existing studs.
• Factory strike and silencer locations matched to LHR handing and included hardware.

Included Fire-Rated Hardware

• Hinges: UL listed fire-rated ball-bearing hinges (quantity/type per door size and listing).
• Lockset:Grade 1 UL fire-rated lockset (function/trim per specification).
• Closer: Fire-rated closer with adjustable sweep and latch; ADA force compliance when properly adjusted.
• Perimeter/Smoke/Weather Seals & Threshold (if specified): Components matched to listing and exterior application.

Performance Advantages

• Inspection-Ready: Coordinated, labeled system minimizes RFIs and rework.
• Rigid Installation: Welded frame and stud-specific anchors improve alignment in existing openings.
• Spec-Grade Durability: 18-gauge steel + Grade 1 hardware for long service life.
• USA Made: Consistent quality with 3–4 week standard production.

Typical Applications

• Exterior egress or access doors in metal stud/drywall construction requiring A Label (3 Hour) protection.
• Retrofit conditions where existing metal stud openings need a 3-hour rated, UL listed assembly.
• Commercial, healthcare, education, civic, and industrial facilities with documented code requirements.
