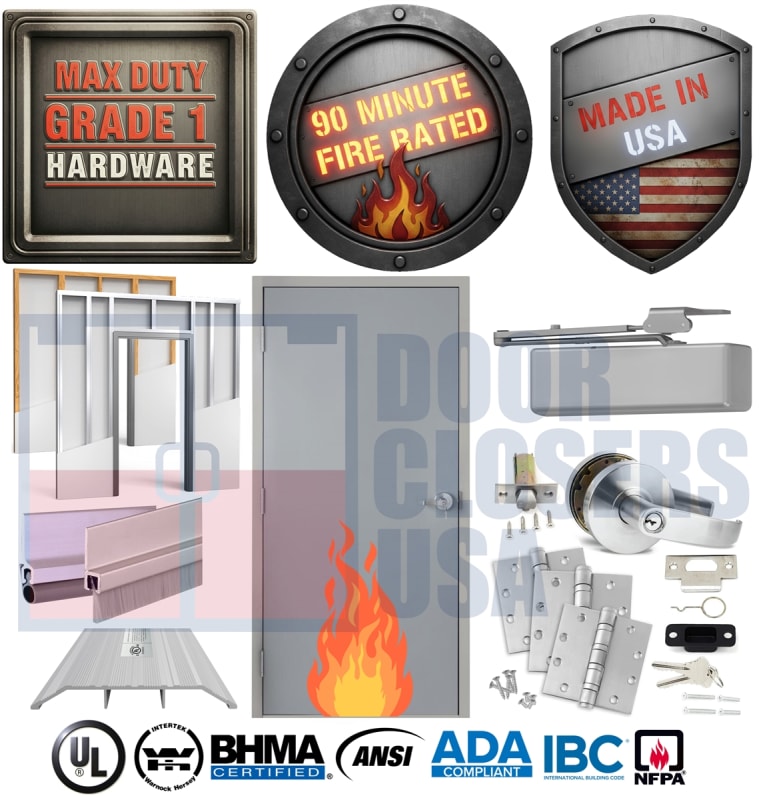

What’s Included (Turnkey)

• Door Slab: 36" x 84", LHR (Left Hand Reverse), 18-gauge galvannealed steel skins, prime painted.
• Fire-Rated Core: Engineered fire-rated core for UL labeling.
• Fire-Rated Drywall Frame: KD slip-on frame for existing stud wall drywall openings (interior).
• Anchors/Fastening: Existing-opening strap/clip anchors with wood or steel stud screws as required.
• UL Listed Grade 1 Hardware Package: fire-rated hinges, lockset or exit device (per spec), fire-rated closer.
• Gasketing/Smoke Seals & Threshold (if specified): Components aligned to listing and interior use.
• Documentation: UL/cUL labels and paperwork to streamline AHJ inspection.

Compliance & Certifications

• 90 Minute Fire Rating – B Label (1-1/2 Hour) per NFPA 80.
• UL/cUL Listed complete system (door, frame, hardware as listed).
• ADA & IBC alignment for clear width, approach, operable parts, and closer force/speed when field-adjusted properly.
• ANSI/BHMA Grade 1 hardware for durability and smooth inspection.

Note: The fire rating applies only when furnished and installed as a complete labeled assembly per UL procedure and local AHJ requirements.

Door Construction

• Size & Handing: 36" x 84", LHR (Left Hand Reverse).
• Skins: 18-gauge galvannealed steel (A40/A60), prime painted for field finish.
• Core: Fire-rated core designed for 90 minute labeling.
• Edges & Reinforcements: Interlocked edges; backing plates at hinges, lock/exit, and closer.
• Interior Use: Designed for conditioned interior environments behind weather protection.

Frame & Anchoring – Existing Stud Wall Drywall

• KD slip on drywall frame for existing interior openings; coordinates with 1/2" or 5/8" drywall (specify).
• Compression anchors
• Factory strike and silencer preps aligned to the included hardware set and LHR handing.
• Clearances/reveals targeted for first-time fit and clean inspection.

Included Fire-Rated Hardware

• Hinges: UL listed fire-rated ball-bearing hinges (quantity/type per height/weight and listing).
• Lock: UL listed Grade 1 fire-rated lock.
• Closer: Fire-rated closer with adjustable sweep/latch; ADA force compliance when adjusted correctly.
• Perimeter/Smoke Seals & Threshold (if specified): Components matched to listing and interior application.

All components are selected to maintain the same UL listing across door, frame, and hardware for an inspection-ready system.

Performance Advantages

• Inspection-Ready: Labeled, coordinated assembly reduces RFIs and rework.
• Turnkey: Door, frame, and hardware curated to the same listing—no guesswork.
• Spec-Grade: 18-gauge steel construction with ANSI/BHMA Grade 1 hardware.
• USA Made: Consistent quality and 3–4 week standard production.

Typical Applications

• Interior corridors, stair enclosures, and rated separations in drywall construction.
• Retrofit projects where existing stud wall drywall openings require a 90 minute (B Label) fire door system.
• Education, healthcare, commercial, and government facilities with documented code requirements.
