Compliance & Certifications

• ADA compliant approach, clearances, and operability
• IBC compliant storefront entrance assembly
• Hardware:Grade 1, UL Listed, and ANSI/BHMA certified (e.g., A156.4 closers, A156.5 locks/latches, A156.6 architectural trim)
• Glazing: 1/4" tempered safety glass suitable for commercial storefront use

Key Features

• Wide stile construction: 5" vertical stiles for heavy-duty, high-traffic applications
• Door size: 36" x 84" (LH handing)
• Glazing: 1/4" tempered safety glass, factory pre-glazed
• Finish: clear anodized, architectural-grade aluminum
• Purpose-built for wood stud wall with veneer (brick, stone, stucco, panel) applications

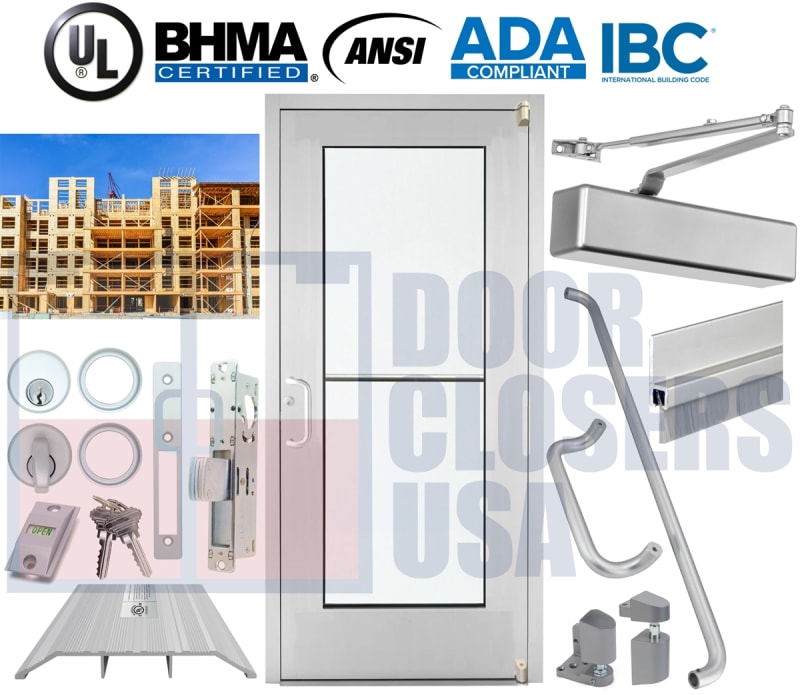

What’s Included (Pre-Installed / Packaged)

• Alumitrex™ wide stile storefront door leaf, 36" x 84", LH
• 1/4" tempered safety glass, factory pre-glazed with commercial glazing vinyl
• Heavy-wall aluminum rails and 5" stiles (clear anodized)
• Heavy-duty deadbolt (Grade 1, UL Listed, ANSI/BHMA certified)
• ADA hydraulic door closer (Grade 1, UL Listed, ANSI/BHMA A156.4 compliant)
• Heavy-duty pivot hinges (top and bottom; ANSI/BHMA certified)
• Exterior: Solid aluminum pull | Interior:push bar (ANSI/BHMA A156.6 compliant)
• Fastener kit for storefront hardware components

All primary hardware components are Grade 1, UL Listed, and ANSI/BHMA certified for premium performance in high-traffic use.

Wall Type & Mounting (Exterior Wood Stud Wall with Veneer)

Designed for exterior wood stud framing with a veneer façade (brick, stone, stucco, or architectural panels). Provide continuous structural backing at jambs and head (e.g., doubled king/jack studs and engineered header). Coordinate WRB, flashing, and sealants with façade and threshold details.

• Anchor into studs/header with structural wood fasteners or lag screws (by installer)
• Shim at manufacturer-recommended points to maintain plumb, level, and square
• Seal perimeter with commercial-grade backer rod and sealant
• Verify smooth swing, latch engagement, and ADA approach clearances

Anchoring fasteners for wood stud walls are not included, allowing the installer to select diameter and length appropriate to stud species, sheathing thickness, and header design.

Specifications

• Nominal Size: 36" x 84"
• Handing: LH
• Stile Width: 5" vertical stiles (wide stile)
• Glazing: 1/4" tempered safety glass, pre-glazed
• Material/Finish: heavy-wall aluminum, clear anodized
• Hardware: Grade 1 UL Listed, ANSI/BHMA certified (closer, lock, pivots, pull/push)
• Use: high-traffic commercial entrances, exterior wood stud wall with veneer
• Origin: Made in USA
• Production: 3–4 week lead time

Quality & Packaging

• Factory pre-glazing and hardware prep to reduce install time
• Protective wrapping and heavy-duty crating for freight transit
• Installation instructions included

Notes

• Verify rough opening, stud layout, sheathing thickness, and veneer details prior to ordering
• Coordinate threshold transition and waterproofing with site conditions
• Site-specific conditions may require alternate anchors or sealants (by installer)
