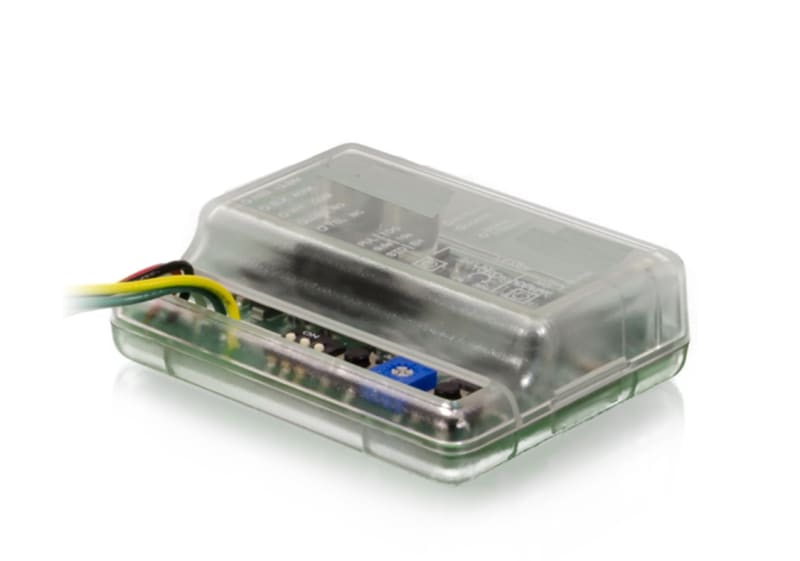

American Entrance Controls Long Range Wireless Receiver Control Board For ADA Automatic Door Openers
The American Entrance Controls wireless receiver control board when synced with the American Entrance Controls wireless transmitter provides the most reliable wireless signal and radio controlled operation. This product is perfect for any type of door control application including ADA door operators and electrified locking hardware.
How It Works
When the American Entrance Controls wireless transmitter is activated or triggered, a 900MHz wavelength is sent to the receiver control board. The receiver control board accepts the signal and provides a Normally Open or Normally Closed dry output contact.
Wireless Receiver Requirements
The American Entrance Controls wireless receiver requires 12/24 VAC/VDC power wired directly to the controller board.
Applications
The American Entrance Controls Wireless Receiver can be used in a variety of door control applications including:
- ADA door opener activation
- Door electric strike lock activation
- Magnetic door lock activation
- Electrified exit device activation
- Electrified mortise lock activation
- Electrified deadbolt activation
- And more
Features
- FCC Certified
- 900MHz frequency
- Receiver control board can sync up to 74 transmitters
- Watchdog LED signifies activation status
- 12/24 VAC/VDC
- 40mA current draw
