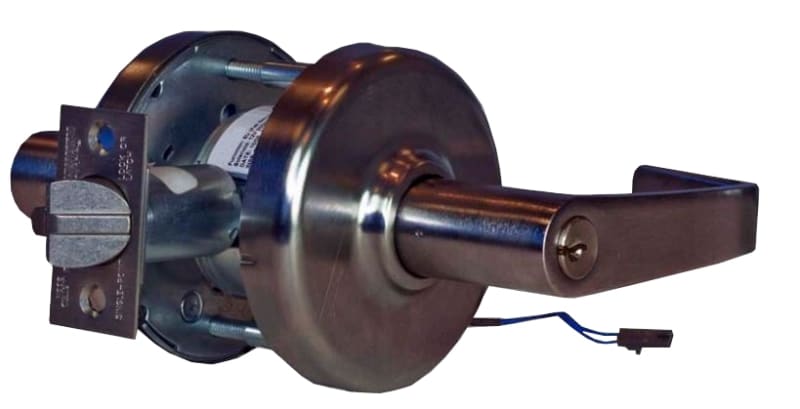

DC USA Approved CL05EU Fail Secure Electrified Storeroom Cylindrical Lock, 2-3/4" Backset (Corbin Russwin 3300 Series Replica)
The DC USA Approved electrified version of the Corbin Russwin 3300 series cylindricallock line allows for remote keyless access and egress control for heavy use applicationswhere security and safety is critical. These locks may be purchased as complete locks or asmodifications only (add MD prefix for modification only of customers' 3357 series). Alongwith the styles and finishes listed, we offer multiple functions and voltages to meet yourrequirements. Common applications include stairwell doors, lobby entrances, computerrooms, classrooms, interior and exterior doors.
Features:- Continuous duty solenoids allow for continuously on applications such as Fail Safe or an unlock cycle
- Plug-in bridge rectifier that allows for an AC or DC power source
- Low current draw
Options:- Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
- Voltage options - 12V or 24V (AC/DC)
- REX - Request to Exit or AE switch available (on all functions)
- CRU2 - Current Reduction Unit to improve solenoid life in continuously on applications
Specifications:- Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Power consumption - 3 watts
- Solenoid coil resistance - 12V = 49 Ohms / 24V = 159 Ohms
Recommended Locking Hardware Power Supplies:- PS204/PS204B
- PS220/220B
- PS480B
- PS2
- PS5-8
Models Available:- CL03EL - storeroom::(fail safe):Outside lever locked (EL) electronically. Latchbolt retracted by key outside orlever inside. Switched power allows outside lever to retract latchbolt. Insidelever is always free for immediate egress.
- CL05EU - storeroom:(fail secure):Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside orlever inside. Switched power allows outside lever to retract latchbolt. Inside leveris always free for immediate egress.
