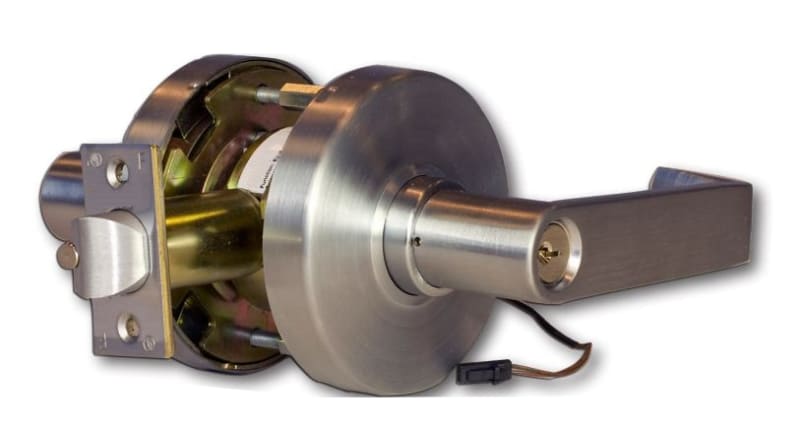

DC USA Approved CL180 Electrified Storeroom Cylindrical Lock, 2-3/4" Backset

The DC USA Approved CL1 is a high quality grade 1 cylindrical lock with the look and feel ourcustomers have come to expect from leading brands, but at a significantly lower price. The CL1is an ideal solution for that project where a "brand name" electrified product is not specified orrequired yet a high quality and economical solution is desired. You can install this lock with theconfidence of knowing that the CL1 meets or exceeds the high standards of our other grade 1modifications.

Features:

• Continuous duty solenoids allow for continuously onapplications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DCpower sourceLow current draw Clutching lever design
• Available SFIC
• Available with Schlage C type keyway standard

Options:

• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
• Voltage options - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available (on all functions)
• CRU2 - Current Reduction Unit to improve solenoid life in continuously on applications

Specifications:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 250 mA / 24V = 150 mA
• Power consumption - 3 watts
• Solenoid coil resistance - 12V = 49 Ohms / 24V = 159 Ohms

Recommended Locking Hardware Power Supplies:

• PS204/PS204B
• PS220/220B
• PS480B
• PS2
• PS5-8

Models Available:

• CL180EL - storeroom::(fail safe):Outside lever locked (EL) electronically. Latchbolt retracted by key outside orlever inside. Switched power allows outside lever to retract latchbolt. Insidelever is always free for immediate egress.
• CL180EU - storeroom:(fail secure):Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside orlever inside. Switched power allows outside lever to retract latchbolt. Inside leveris always free for immediate egress.
