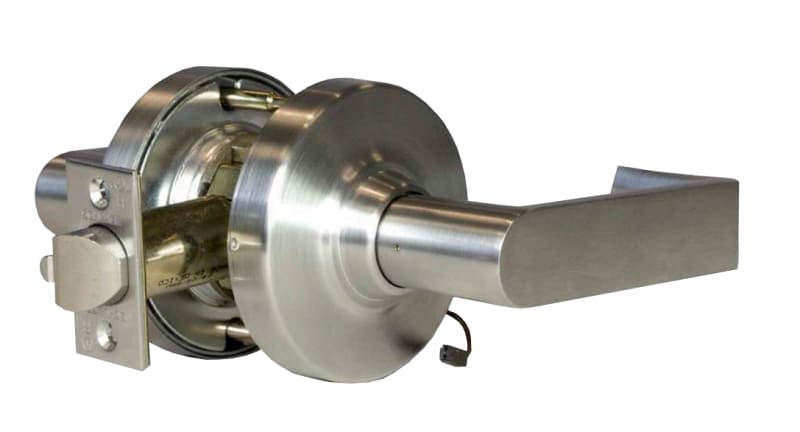

DC USA Approved CLN12 Electrified Exit Cylindrical Lock, 2-3/4" Backset (Schlage ND Series Replica)
The DC USA Approved electrified version of the Schlage ND80 series cylindrical lock lineallows for remote keyless access and egress control for heavy use applications where securityand safety is critical. These locks may be purchased as complete locks or as modificationsonly (add MD prefix for modification only of customers' ND80 series). Along with the stylesand finishes listed, we offer multiple functions and voltages to meet your requirements.Common applications include stairwell doors, lobby entrances, computer rooms, classrooms,interior and exterior doors.
Features:- Continuous duty solenoids allow for continuously on applications such as Fail Safe or an unlock cycle
- Plug-in bridge rectifier that allows for an AC or DC power source
- Available with Schlage C type keyway standard (please inquire for all Schlage original keyways)
Options:- Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
- Available B option for SFIC (small format interchangeable core) prep - less core
- Available J option for Schlage large format interchangeable core prep - less core
- Available R option for Schlage large format interchangeable core prep - with C-Keyway core
- Voltage options - 12V or 24V (AC/DC)
- REX - Request to Exit or AE switch available (on all functions)
- CRU2 - Current Reduction Unit to improve solenoid life in continuously on applications
- CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the locksetto run cooler and last longer without any manual adjustments
Specifications:- Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Power consumption - 3 watts
- Solenoid coil resistance - 12V = 49 Ohms / 24V = 159 Ohms
Recommended Locking Hardware Power Supplies:- PS204/PS204B
- PS220/220B
- PS480B
- PS2
- PS5-8
Models Available:- CLN12EL/EU - exit: (fail safe/fail secure):Outside lever locked (EL) or unlocked (EU) electronically. Latchboltretracted by lever inside. Switched power allows outside lever to retractlatchbolt. Inside lever is always free for immediate egress.
- CLN70PEL/EU - classroom: (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retractedby key outside or lever inside. Switched power allows outside lever to retractlatchbolt. Outside lever can be maintained unlocked by key. Inside lever isalways free for immediate egress.
- CLN80PEL/EU - storeroom: (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retractedby key outside or lever inside. Switched power allows outside lever to retractlatchbolt. Inside lever is always free for immediate egress.
- CLN96PEL/EU - storeroom: (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Outside clutching leverallows the lever to turn without retracting the latchbolt when locked. Latchboltretracted by key outside or lever inside. Switched power allows outside lever toretract latchbolt. Inside lever is always free for immediate egress.
