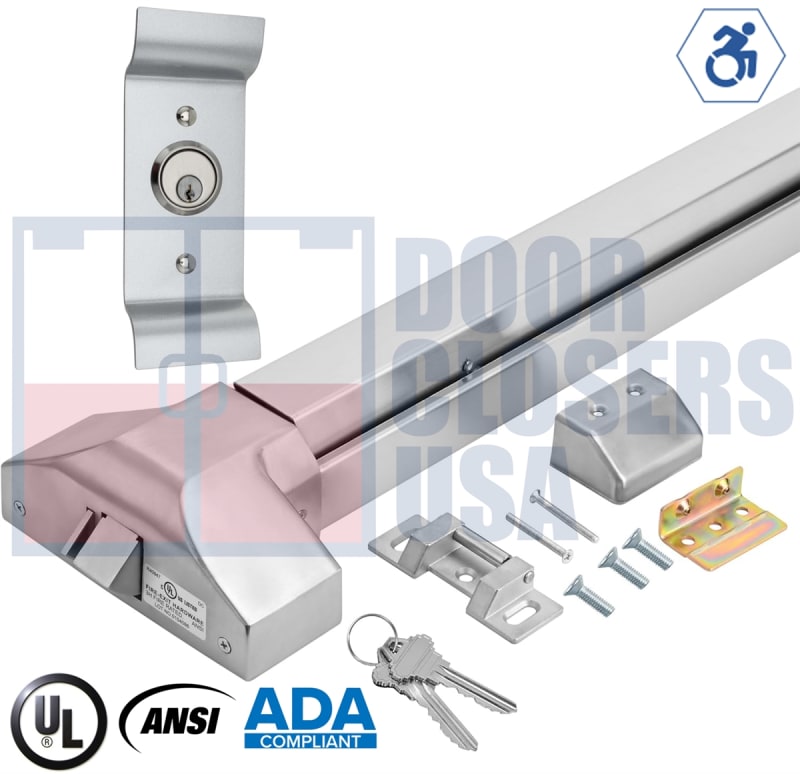

Entry Systems ES4 Rim Exit Device W/ Outside Pull Handle and Lock Cylinder - Fits 28" to 36" Medium Stile Hollow Metal or Wood Doors - Aluminum Finish - Schlage C Keyway, Dogging, 2-3/4" Backset, 5/8" Stainless Steel Latch - Grade 1, UL Listed

Entry Systems ES4 with Outside Pull Handle and Lock Cylinder is a Grade 1 rim exit device designed for medium stile commercial doors between 28" and 36" wide. This version includes a durable outside pull handle paired with a Schlage C keyway lock cylinder to provide secure keyed entry from the exterior.

The device features a 5/8" stainless steel throw latch with deadlatch, a 2-3/4" backset, and a 4-1/2" minimum stile. The rail can be trimmed to size. As a non-fire-rated model, it includes Allen key dogging for hold-open function during business hours.

• Model: ES4 (Rim Exit Device with Pull Handle and Cylinder)
• Door Width: 28"–36"
• Trim: Outside pull handle with lock cylinder
• Cylinder: Schlage C keyway
• Dogging: Yes (Allen key)
• Latch: 5/8" stainless steel throw latch with deadlatch
• Backset: 2-3/4"
• Finish: Aluminum (AL)
• Compliance: ANSI/BHMA A156.3 Grade 1
• Listings: UL Listed for panic hardware
