Glass Pro Hardware FGD200 Series 42 to 48" Wide Herculite Frameless Glass Door Heavy Spring Power, 105 Degree Full Open, Hold Open Function, 3/4" Extended Spindle, Concealed Closer Body
The Glass Pro Hardware FGD200 Series Concealed Door Closer
is designed for center hung Herculite frameless glass door applications requiring smooth hydraulic control, reliable centering, and durable leak-resistant performance. This model features heavy spring power, a 105 degree full open back stop, hold open function, and a 3/4" extended spindle for improved door support.
Frameless Glass Door Concealed Closer Design
The Glass Pro Hardware FGD200 Series is engineered for dependable hydraulic performance under demanding commercial door conditions. The concealed closer body includes upgraded sealing technology throughout the closer to help reduce oil leakage and extend service life.
- Steel spring cap located on top of the closer body
- High performance O-ring and epoxy sealed threads for double protection
- Automotive-style heavy duty spindle seal replacing older standard O-ring technology
- Two adjustment valves with dual high performance O-rings
- Steel end caps with high performance O-rings and epoxy sealed threads
- Adjustable back check after 80 degrees to help prevent the door from slamming open
Application
- For center hung frameless glass doors
- Suitable for double acting or single acting door applications
- Door stop applied to frame renders the unit single acting
- Designed for concealed installation in aluminum header or transom bar applications
- Cast iron closer body fits aluminum headers or transom bars as small as 1-3/4" x 4"
Product Features
- Heavy spring power
- 105 degree full open back stop
- hold open function
- 3/4" extended spindle for improved door support
- Built-in positive back stop
- Positive centering helps align the door and hold it closed against normal wind or draft
- Stable hydraulic door check fluid for consistent operation in varying climates
- Constant internal lubrication for smooth performance
- Short “A” type end loading top arm supplied for smaller top rail applications
- 5-3/4" short “A” arm measured from center line of spindle to end of arm

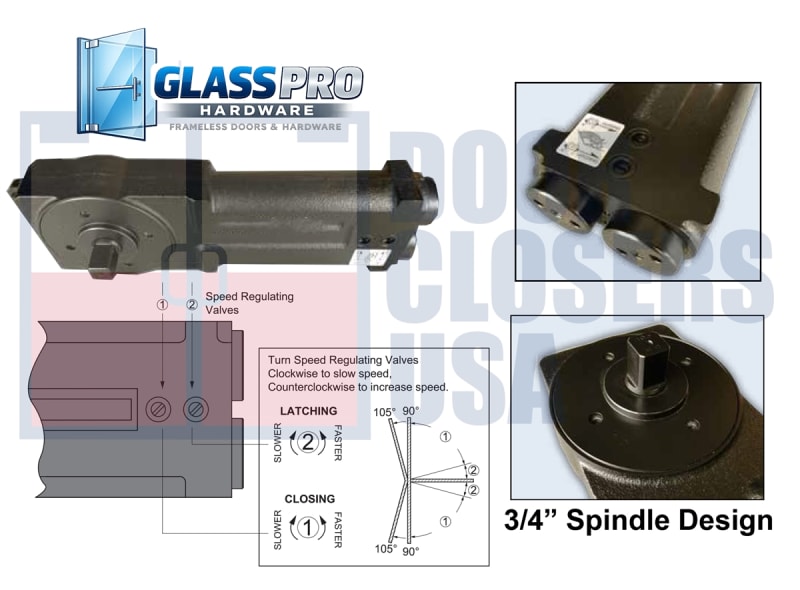

Adjustable Control Valves
The FGD200 Series concealed closer includes two fully adjustable control valves that can be adjusted after installation.
- Closing speed adjustment
- Latching speed adjustment
Bottom Pivot Optional
An adjustable dual purpose radial ball-bearing bottom pivot set is available for floor mounted or threshold mounted center pivoted installation.
