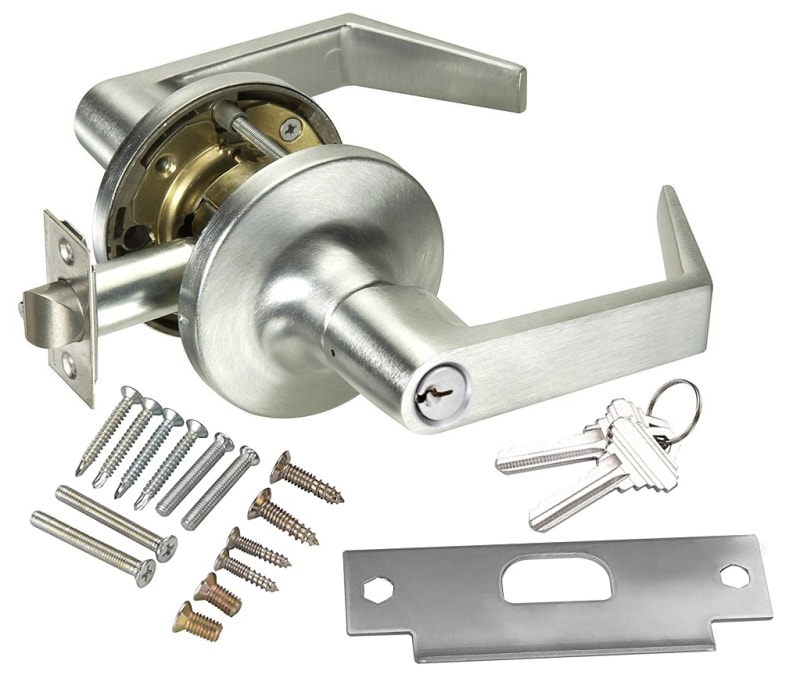

Hager Grade 1 Heavy Duty Commercial Storeroom Door Lock, 3-7/16 in. Rose Trim, Key Cylinder On Outside, Plain Lever On Inside, 6 Pin Schlage C Keyway, 626 Satin Chrome Finish
Hager brand grade 1 locks are designed for heavy duty applications and are commonly used on commercial wood or steel doors.
Features
- Heavy Duty
- Brass 6 Pin Cylinder, Schlage C Keyway
- 2-3/4 in. Backset
- 3-17/32 in. Rose Trim Diameter
- 2-31/32 in. Lever Projection
- 4-27/32 in. Lever Length
- For Door Thicknesses 1-3/4 in. to 2 in.
ANSI F86 Storeroom Function
- Key cylinder outside; plain leverinside
- Deadlatch Type
- Outside lever always fixed
- Key can retract the latch
- Inside lever always free forimmediate egress
Includes
- 1 Each Hager Storeroom Lock
- 2 Each Keys
- 1 Each ASA Strike
- Hardware
![]()
