Hager Grade 2 Standard Duty Commercial Entrance Door Lock, No Clutch, 3-11/32 in. Rose Trim, Key Cylinder On Outside, Push/Turn Button On Inside, Schlage C Keyway, 626 Satin Chrome Finish
Hager brand grade 2 locks are designed for standard duty applications and are commonly used on commercial wood or steel doors.
Features
- Standard Duty
- No Clutch
- Schlage C Keyway
- 2-3/4 in. Backset
- 3-11/32 in. Rose Trim Diameter
- 2-21/32 in. Lever Projection
- 4-17/32 in. Lever Length
- For Door Thicknesses 1-3/8 in. to 2 in.
ANSI F109 Entrance Function
- Key cylinder outside; push/turnbutton inside
- Deadlatch Type
- Inside button locks outside leverby pushing button or pushingand turning button
- Pushed button: unlock with keyoutside or by rotating inside lever
- Pushed/turned button: keyoutside retracts latch only;unlock by returning inside buttonto home position then using keyor rotating inside lever
- Inside lever always free forimmediate egress

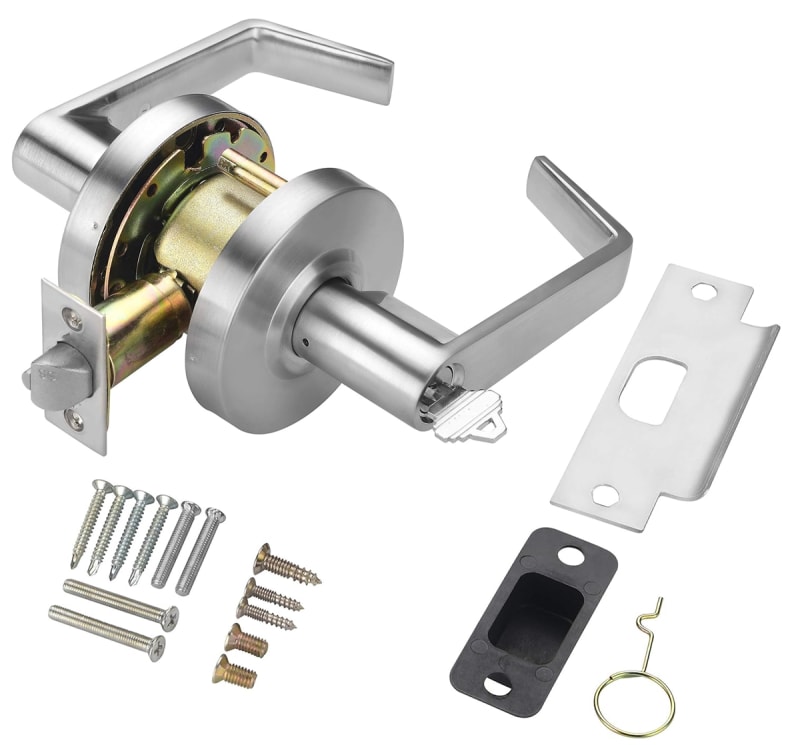

Includes
- 1 Each Hager Entrance Lock
- 2 Each Keys
- 1 Each ASA Strike
- Hardware
![]()
