Jackson Cross Bar Rim Panic Exit Hardware With Dogging, For Single Door Applications Up To 48" Wide, Left Hand Reverse, Dark Bronze Finish

The Jackson Cross Bar Rim Panic Exit Device with dogging is a heavy-duty commercial exit hardware solution designed for single door applications up to 48" wide. Built for smooth, quiet operation and long-term durability, this rim panic device is ideal for aluminum storefront doors, commercial wood doors, and hollow metal doors where reliable egress and code-compliant performance are required.

CRL Jackson® Exit Devices are widely recognized as a standard in aluminum storefront hardware. Designed to withstand daily wear and tear while maintaining a clean, professional appearance, each device is manufactured from high-quality materials and hand fitted for smooth, whisper-quiet operation. This model is designed for use on 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors.

Key Features

• For single door applications up to 48" wide
• Left Hand Reverse (LHR) handing
• Rim panic exit hardware configuration
• Dark Bronze finish
• Cross bar operation on active side
• Contoured field sizeable 48" long crossbar
• Concealed fastening for added security
• Dual dogging feature - by outside cylinder and by dogging pins on panic housing
• Wear points insulated by nylon sleeves and rollers
• ANSI/BHMA A156.3 certified
• UL Listed
• Includes mounting hardware

Built for Commercial Storefront and Entry Door Applications

The Jackson Cross Bar Rim Device is designed for dependable performance in demanding commercial environments. It is suitable for use with 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, making it a versatile choice for retail storefronts, office buildings, schools, churches, and other commercial facilities.

This exit device features a contoured 48" crossbar and concealed fastening for a secure, professional installation. The dual dogging feature allows the device to be dogged by outside cylinder or by dogging pins on the panic housing, helping improve traffic flow during business hours when free passage is desired.

Durable Materials and Smooth Operation

Jackson designed this panic device with premium materials for long service life and dependable performance. The body and arms are made from high tensile strength aluminum. Mechanical components are manufactured from stainless steel and hardened plated steel, while the latch and strikes are made from sintered steel. Wear points are insulated by nylon sleeves and rollers to promote smooth, quiet operation and reduce long-term wear.

Specifications

• Brand: Jackson
• Model: Crossbar
• Series: 10
• Panic Type: Rim
• Certification: ANSI/BHMA 156.3
• UL Listed: Yes
• Door Thickness: 1-3/4" (44.5 mm)
• Door Width: Up to 48" (1219.2 mm)
• Finish/Color: Dark Bronze
• Handing: Left Hand Reverse Bevel (LHR)
• Minimum Stile Width: 1-3/4" (44.5 mm)

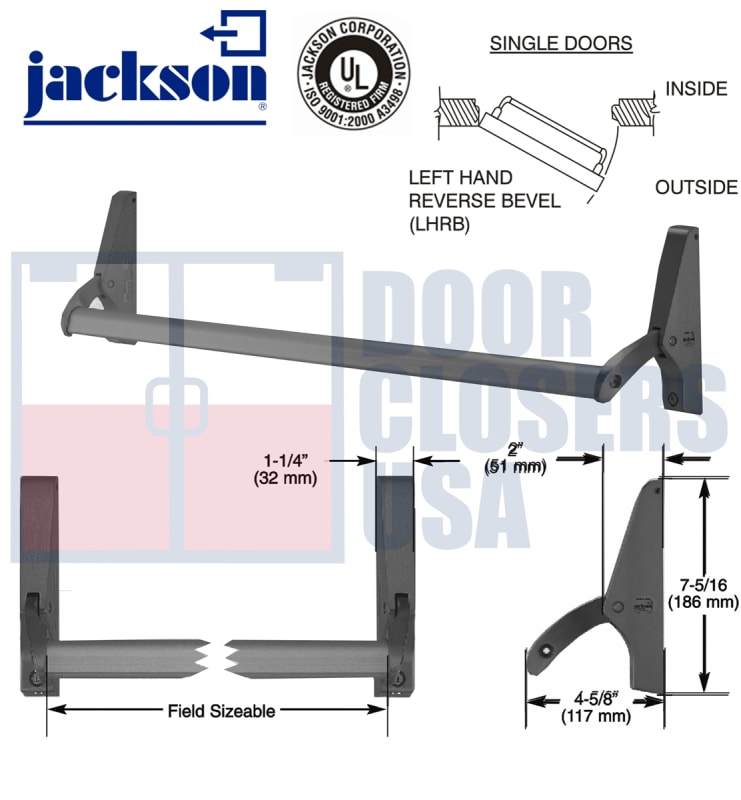

• Panic Bar Projection: 4-5/8" (117.5 mm)
• Panic Bar Width Net: 48" (1219.2 mm)
• Panic Head Base Width: 1-1/4" (31.8 mm)
• Panic Head Height: 7-5/16" (185.7 mm)
• Panic Dogging: Screw Driver
• Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
• Includes: Mounting Hardware
• Replacement Parts: 301115, 301117628, 301409, DL911SCKDA, DL911SCKAA

Materials

• Body and Arms: High tensile strength aluminum
• Mechanical Components: Stainless and hardened plated steel
• Latch and Strikes: Sintered steel

Important Notes

• Cross Bar Rim Device requires rim cylinder for keyed entry
• Cylinder mounting pad is not required
• Wood door mounting requires use of Wood Door Mounting Kit

Why Choose the Jackson Cross Bar Rim Panic Device?

If you need a proven storefront exit device that combines code-compliant performance, durable materials, and a clean architectural appearance, the Jackson Cross Bar is an excellent choice. Its crossbar design, concealed fastening, dual dogging capability, and commercial-grade construction make it well suited for high-traffic single door openings where reliability matters.

Product Warning

Wood door mounting requires use of Wood Door Mounting Kit. Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Jackson Cross Bar Rim Installation Instructions

• Drill bits: 5/8", 11/64", 13/64"
• Tap: 1/4" - 20
• Tape measure
• Saw horses
• Cordless drill
• Phillips #2 screwdriver
• Slot tip screwdriver
• Framing square/straight edge
• Masking tape
• Center punch
• Flat File
• Round File
• Jigsaw with metal cutting blade
• Torx T-10 driver

SECTION 08 7100

CROSSBAREXIT DEVICE SPECIFICATIONS

Part 1 – General

1.1Quality Assurance

A.Reference Standards

a.AmericanNational Standards Institute (ANSI/BHMA)

i.A117.1 Providing Accessibility and Usability forPhysically Handicapped People

ii.A156.3 Exit Devices

iii.A156.18Materials and Finishes

b.Americanswith Disabilities Act (ADA)

c.AmericanSociety for Testing and Materials (ASTM)

d.NationalFire Protection Association (NFPA 101)

e.UnderwritersLaboratory (UL)

i.305 Panic Hardware

B.Source Quality Control

a.Allexit devices shall be UL 305 Listed.

b.Provideall hardware necessary to meet the requirements of NFPA 101 for exit doors.

c.Provideexit devices, exterior activating trims and removable mullions from a singlemanufacturer.

C.DEFINITIONS

Type1 – Rim Exit Devices

Type2 – Surface Vertical Rod Exit Devices

Type4 – Narrow Stile Rim Exit Devices

Type5 – Narrow Stile Surface Vertical Rod Devices

Type6 – Narrow Stile Concealed Vertical Rod Exit Devices

Type22 – Removable Mullions

Part 2- Products

2.1 Materials and Fabrication

A. General

1.Thedesign standards shall be based on the Cross Bar Exit Device, 8500LV (for type 6 exit devices) and 9500LV (for type 1 or type 4 exit devices)exterior activating trim and 896 removable mullions as manufactured by Jackson/C.R.Laurence Co., Inc., P.O. Box 58923, Los Angeles, CA, 90058-0923; Tel: (800)421-6144 or (323) 588-1281 Ext. 7520; Fax (800) 888-6855 or (323) 581-6522;Email: [email protected].

2.Provideadjustable strikes for rim type (type 1 and type 4) and vertical rod type (type6) devices.

3.Verticalrod devices shall incorporate top and bottom bolts that are field adjustablewithout the need of removing any screws or other fastening devices.

4.Rimtype devices shall be furnished with ¾” throw latch bolt.

5.Exteriorlever trim (if required) shall be an ANSI function 08 with either a round orflat lever as directed by architect.

6.Exteriordogging (if required) shall incorporate an 821J cylinder mounting pad andstandard 1” mortised cylinder.

B.MATERIALS

1.Bodyand arm assemblies shall be high tensile strength aluminum.

2.Crossbarshall be extruded tubular aluminum.

3.Mechanicalcomponents shall be stainless and/or hardened steel.

4.Topand bottom bolts shall be plated hardened steel.

5.Strikesand latches shall be sintered steel.

C. FINISHES

1.Manufacturer’sstandard dark bronze anodized (DBZ313) or,

2.Manufacturer’sstandard satin aluminum anodized (US28/628).

Part 3 – Execution

3.1 Installation

A. General

1. Installation shall be inaccordance with the templates and installation instructions packaged with the devicesat the time of manufacture.

2. Installation shall bemade with fasteners packaged with the devices by the manufacturer.

3.2 Adjustment

1. Adjust all exit devicesand trim in accordance with the installation instructions packaged with thematerial at the time of manufacturer.

2. Deliver cylinder keys,dogging keys and adjustment wrenches to owner.
