Jackson Crossbar Aluminum Rim Cylinder, Keyed Different For Cross Bar Rim Panic Exit Hardware, Aluminum Finish

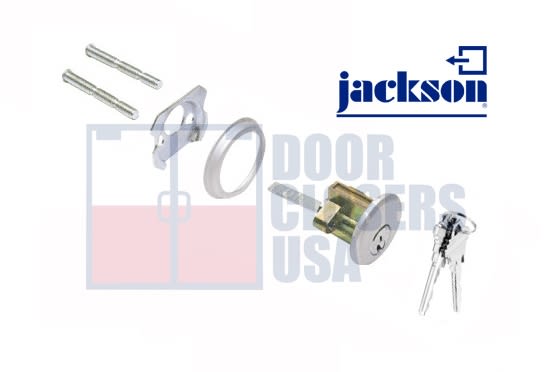

Jackson Crossbar rim cylinder assembly.

Key Features

• Rim Cylinder Kit

Compatibility

• Compatible With Jackson Crossbar Rim Panic Hardware

Jackson Cross Bar Rim Installation Instructions

• Drill bits: 5/8", 11/64", 13/64"
• Tap: 1/4" - 20
• Tape measure
• Saw horses
• Cordless drill
• Phillips #2 screwdriver
• Slot tip screwdriver
• Framing square/straight edge
• Masking tape
• Center punch
• Flat File
• Round File
• Jigsaw with metal cutting blade
• Torx T-10 driver

SECTION 08 7100

CROSSBAREXIT DEVICE SPECIFICATIONS

Part 1 – General

1.1Quality Assurance

A.Reference Standards

a.AmericanNational Standards Institute (ANSI/BHMA)

i.A117.1 Providing Accessibility and Usability forPhysically Handicapped People

ii.A156.3 Exit Devices

iii.A156.18Materials and Finishes

b.Americanswith Disabilities Act (ADA)

c.AmericanSociety for Testing and Materials (ASTM)

d.NationalFire Protection Association (NFPA 101)

e.UnderwritersLaboratory (UL)

i.305 Panic Hardware

B.Source Quality Control

a.Allexit devices shall be UL 305 Listed.

b.Provideall hardware necessary to meet the requirements of NFPA 101 for exit doors.

c.Provideexit devices, exterior activating trims and removable mullions from a singlemanufacturer.

C.DEFINITIONS

Type1 – Rim Exit Devices

Type2 – Surface Vertical Rod Exit Devices

Type4 – Narrow Stile Rim Exit Devices

Type5 – Narrow Stile Surface Vertical Rod Devices

Type6 – Narrow Stile Concealed Vertical Rod Exit Devices

Type22 – Removable Mullions

Part 2- Products

2.1 Materials and Fabrication

A. General

1.Thedesign standards shall be based on the Cross Bar Exit Device, 8500LV (for type 6 exit devices) and 9500LV (for type 1 or type 4 exit devices)exterior activating trim and 896 removable mullions as manufactured by Jackson/C.R.Laurence Co., Inc., P.O. Box 58923, Los Angeles, CA, 90058-0923; Tel: (800)421-6144 or (323) 588-1281 Ext. 7520; Fax (800) 888-6855 or (323) 581-6522;Email: [email protected].

2.Provideadjustable strikes for rim type (type 1 and type 4) and vertical rod type (type6) devices.

3.Verticalrod devices shall incorporate top and bottom bolts that are field adjustablewithout the need of removing any screws or other fastening devices.

4.Rimtype devices shall be furnished with ¾” throw latch bolt.

5.Exteriorlever trim (if required) shall be an ANSI function 08 with either a round orflat lever as directed by architect.

6.Exteriordogging (if required) shall incorporate an 821J cylinder mounting pad andstandard 1” mortised cylinder.

B.MATERIALS

1.Bodyand arm assemblies shall be high tensile strength aluminum.

2.Crossbarshall be extruded tubular aluminum.

3.Mechanicalcomponents shall be stainless and/or hardened steel.

4.Topand bottom bolts shall be plated hardened steel.

5.Strikesand latches shall be sintered steel.

C. FINISHES

1.Manufacturer’sstandard dark bronze anodized (DBZ313) or,

2.Manufacturer’sstandard satin aluminum anodized (US28/628).

Part 3 – Execution

3.1 Installation

A. General

1. Installation shall be inaccordance with the templates and installation instructions packaged with the devicesat the time of manufacture.

2. Installation shall bemade with fasteners packaged with the devices by the manufacturer.

3.2 Adjustment

1. Adjust all exit devicesand trim in accordance with the installation instructions packaged with thematerial at the time of manufacturer.

2. Deliver cylinder keys,dogging keys and adjustment wrenches to owner.
