Kawneer 050-930 Overhead Concealed Closer Body - 105° Swing Open - No Hold Open - Heavy Duty Spring Power
If your storefront door won’t close, won’t latch, or is being pushed open by wind or air pressure, the Kawneer 050-930 Husky II Overhead Concealed Closer Body is designed to fix that problem.
This model features a 105° swing open with no hold open function, ensuring the door automatically returns to the closed position every time — critical for security, safety, and code-compliant openings.
With heavy duty spring power, this closer delivers maximum closing force to overcome wind, stack pressure, and door alignment issues, helping ensure reliable latching in demanding environments.
✔ Doors That Must Always Close (No Hold Open)
- No hold open function — door will automatically return to closed position
- Ideal for security-sensitive openings and controlled access points
- Prevents doors from being left open unintentionally
✔ Fix Doors That Won’t Close or Latch
- Heavy duty spring power provides maximum closing force
- Overcomes wind, air pressure, and misalignment issues
- Helps ensure the door fully closes and latches every time
✔ Built-In 105° Back Stop Protection
- Allows door to open up to approximately 105 degrees
- Integrated back stop helps protect door, frame, and hardware
- Prevents over-travel damage in high-traffic areas
✔ Designed for High-Resistance Door Conditions
- Perfect for exterior storefront doors exposed to wind
- Ideal for buildings with stack pressure or air imbalance
- Recommended for doors that fail to latch with lighter spring closers
✔ Heavy-Duty Commercial Performance
- Tested to ANSI A156.4 Grade 1 standards
- Exceeds 2,000,000 cycle durability requirements
- Built for long-term use in demanding commercial environments
✔ Smooth, Controlled Door Operation
- Dual speed control valves for independent adjustment of closing and latching speeds
- Hydraulic fluid system ensures consistent performance across temperature extremes
- Positive cam centering helps keep the door aligned and securely closed
✔ Designed for Aluminum Storefront Doors

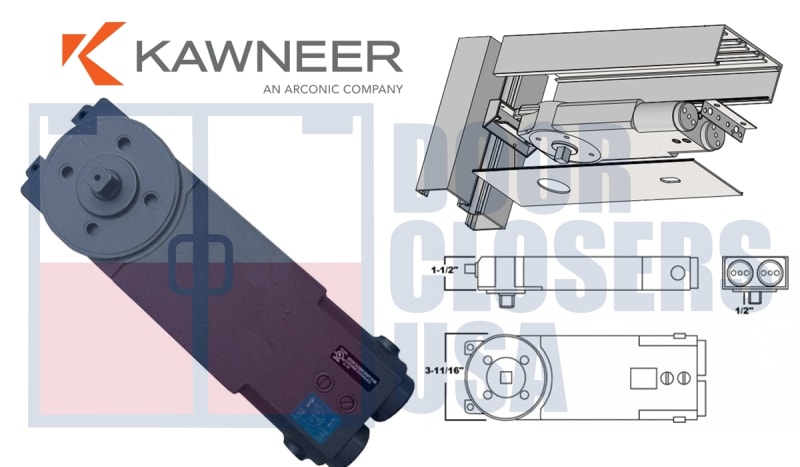

The Kawneer Husky II concealed closer body installs inside commercial aluminum storefront headers or transoms, maintaining a clean, concealed appearance.
- Fits headers as small as 1-3/4" x 4"
- Universal non-handed design (left or right hand doors)
- Compatible with multiple arm configurations depending on door type
✔ Compatible Door Applications
Center Hung Doors:
- Single or double acting applications
- Works with ‘S’, ‘A’, ‘K’, and ‘PT’ type arms
- Used with bottom pivot sets for floor or threshold mounting
Offset Hung Doors:
- Single acting applications only
- Compatible with ‘JO’ and ‘VO’ offset arms
- For butt hinge or offset pivot configurations
⚠️ ADA Opening Force Consideration
This closer is designed for maximum closing force and may not meet ADA reduced opening force requirements in certain applications.
If ADA compliance is required, a lower spring power closer may be needed depending on door size, weight, and jobsite conditions.
⚠️ Important – What You Are Purchasing
- This listing is for the closer body only
- Top arm, pivots, and anchor sets are sold separately
- Proper arm type must be selected based on your door configuration
