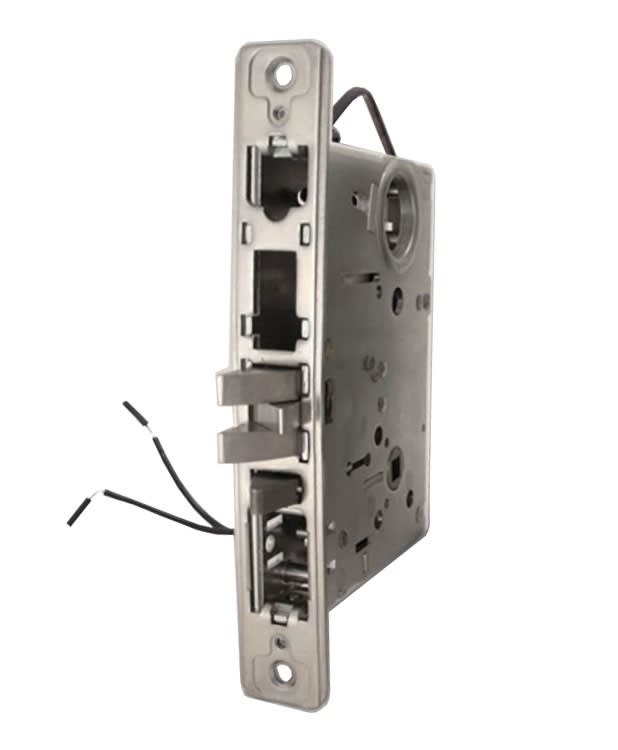

DC USA Approved MRC18082 Electrified Solenoid Institutional Mortise Lock Chassis Only (Cal Royal 8800 Replica)


The DC USA Approved MRC1 retrofit chassis series utilizes a high quality Grade 1 chassisbuilt to withstand years of use. You can install this lock with the confidence of knowingthat the MRC1 carries our top tier features, options, and specifications. The MRC1 allowsfor field handing. This mortise lock retrofitsany of the original manufactures series compatible trim and includes a new faceplate &strikeplate.

Voltage:
  • Operating Voltage - 12 or 24VAC/DC (+or- 10%)
  • Amperage - 12V = 700 mA / 24V = 350 mA
  • Solenoid coil resistance - 12V = 18 Ohms / 24V = 69 Ohms
  • Power consumption - 8 watts
  • Available Fail Safe (EL) or Fail Secure (EU)
Accessories:
  • Current Reduction Unit (CRU2) - 10-30V inputmanages power to efficiently control a 12 or 24Vsolenoid. Improve solenoid life in continuously onapplications.
  • Request to Exit (REX) - sends a signal to alert thecontrol panel that the door is about to be openedby someone intending to exit from within a securedarea.
  • Latchbolt Monitor (LBM) - Monitor the position of thelatchbolt
Features:
  • Continuous duty solenoids allow for "continuouslyon" applications such as Fail Safe or an unlock cycle
  • Plug-in bridge rectifier that allows for an AC or DCpower source supplied with all locks
  • Low current draw
  • Handing Field Reversible
Recommended Locking Hardware Power Supplies:
  • PS204/PS204B
  • PS220/220B
  • PS480B
  • PS2
  • PS5-8
Models Available:
  • MRC135D, MRC18080, MRC105/03, MRC181/51 - Storeroom:(fail safe/fail secure)Outside lever locked (EL) or unlocked (EU) electronically. Latchboltretracted by key outside or lever inside. Applied power allows outsidelever to retract latchbolt. Inside lever is always free for immediate egress.
  • MRC135W, MRC180802, MRC104/01, MRC121/11 - Institutional:(fail safe/fail secure)Outside and inside levers simultaneously locked (EL) or unlocked(EU) electronically. Latchbolt retracted by key on either side. Appliedpower allows both levers to retract latchbolt.
  • MRC1681/51 - Entry w/ deadbolt:(fail safe/fail secure)Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt anddeadbolt retracted by key outside or lever inside. Applied power allowsoutside lever to retract latchbolt and deadbolt. Inside lever is alwaysfree for immediate egress
