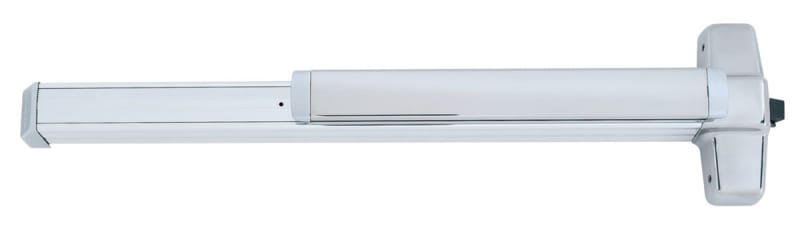

PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica)

*Generic Image, Refer to Description for Model and Finish

PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 1 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 2 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 3 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 1 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 2 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 3 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 4 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 1 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 2 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 3 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 4 of 0
PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica) - Image 5 of 0

PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica)

Door Closers USA
0 Reviews
List Price: $2,252.57
$1,126.28
Savings: $1,126.29

Item Return Policy: Assembled Per Order, Non-Returnable
Choose your options:
Door Width (74):
Finish (74):
Handing (74):
Include REX Switch (74):
Include LBM Switch (74):
Fire Rated (74):
PD25/26 Exit Device Trim (74):
Include Power Supply (74)
Include Power Supply (74):
Include Power Transfer (74):
Product Code: DCPD25-M-RIM
Usually Ships in 3-5 Business Days
This product qualifies for FREE SHIPPING!

Description

DC USA Approved PD25-M-RIM Electrified Rim Exit Device With Motorized Latch Retraction (Cal Royal 7700 and Von Duprin 98/99 Series Replica)


The DC USA Approved PD25-M series is a motorized latch pullback Grade 1architectural exit device; made for use in all institutions and commercial buildingswhen heavy duty, fire and life safety operation is required. All PD25-M models areequipped with our PTS "push to set" technology. We know that door conditions changeand in retrofit scenarios you never know exactly what you're walking into. But with our PTSadjustment your post installation adjustment is greatly simplified in 5 quick seconds. Installthis device with the confidence of knowing that the PD25-M meets or exceeds the highstandards of other grade 1 products.

Features:
  • Our motorized latch retraction is fast, quiet, and smooth!
  • MM3 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
  • "PTS": 5 second electronic adjustment for easy post installation adjustment
  • Electric dogging rated for continuous duty - Auto re-lock if dogged push pad is pulled from position
  • Low current draw: Compatible with most 24VDC, 1A (or greater) regulated power supplies
  • Up to 700' wire run with 2/18 wire - Long wire runs provides installer with convenience of placing the lockingdevice power supply in a centralized location; i.e. the same closet as the access panel
  • 6' cable with Quick Connect for MM3 module to easily connect to power supply lead
Specifications:
  • Voltage range - 24 to 30 VDC
  • System protection - unit shutdown whenvoltage exceeds 30VDC
  • Current Peak - 1A Voltage range - 24 to 30 VDC
  • System protection - unit shutdown whenvoltage exceeds 30VDC
  • Current Peak - 1A
Hardware:
  • Materials: Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad. End caps are made of brass, bronzeor stainless steel; rail travels in direction of the door swing.
  • All exit device entry trim are thru-bolted for additional security. Check application page for handing and lever style. Pull lever, thumbpiece and escutcheon trims available.
  • All exit devices are of touch bar design with smooth operation and operative over 2/3 of the door's clear opening width. All springsare stainless steel throughout; all exit devices are chassis-mounted unit construction; rim and vertical rod devices are non-handedand easily reversible.
  • Door Widths: dimensioned for 36" and 48" doors. Consult factory if field cut is required for smaller size doors with latch pullback
  • Door Height: All devices are UL listed for Panic and ULC10C, UBC 7-2-1997 codes. Single door: 48" x 96". Double door: 96" x 96"
  • Hurricane Approved for Exit Device hardware: Florida Building Code FL 13922
  • Stile Width: 2-3/4" backset with center hub; minimum 4-1/2" stile required; optional 2-1/4" available.
  • Dogging: Electronic Dogging only -- no mechanical dogging available with electrified hardware.
  • Fasteners: all provided, thru-bolts included with all trim for extra security
  • Cylinders: not provided. Install RIM cylinder by others.
  • Options: Mullions, strikes, less bottom rod, latch guards and pulls - see application cut sheet
