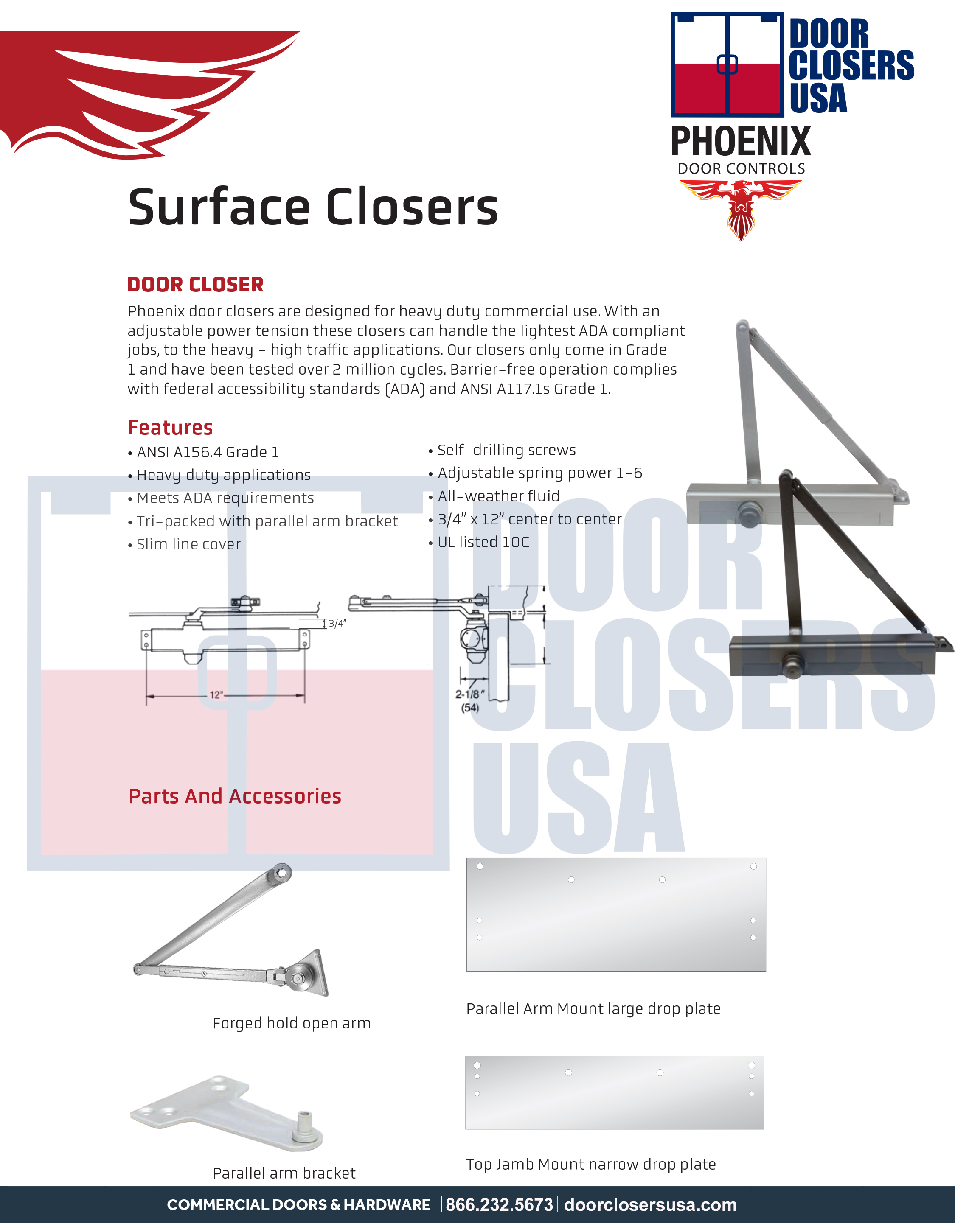

Key Features

• Grade 1 performance: Tested to over 2 million cycles; built for heavy duty commercial use
• Adjustable power: Spring power sizes 1–6 for light ADA doors up to high-traffic exterior doors
• Fine control: Independent valves for closing speed and latch speed adjustment
• Backcheck: Cushions the door opening to protect people, hardware, and adjacent walls
• Tri-packed: Mount as Regular Arm, Top Jamb, or Parallel Arm (PA bracket included)
• Dark Bronze finish: Clean architectural look with a slimline cover
• All-weather fluid: Consistent performance across seasonal temperature changes
• Standard template: 3/4" x 12" center-to-center mounting hole pattern
• Fast installation: Includes self-drilling screws and PA bracket
• UL Listed 10C: Suitable for labeled fire door assemblies

What’s Included

• Phoenix 12" x 3/4" door closer body with slimline cover (Dark Bronze finish)
• Tri-pack hardware set: Regular arm, top jamb hardware, and parallel arm (PA) bracket
• All necessary screws (self-drilling for metal and wood applications)
• Detailed installation instructions

Applications

Ideal for schools, healthcare facilities, offices, retail, multifamily, and public buildings where smooth control, durability, and code compliance are required. Adjustable spring power allows one model to cover a broad range of door sizes and conditions, from barrier-free light-opening force to high-traffic exterior entrances.

Compliance & Ratings

• ANSI/BHMA: A156.4 Grade 1
• Accessibility: ADA & ANSI A117.1 barrier-free compliant (when properly adjusted)
• Fire: UL Listed 10C for fire door assemblies

Technical Details

• Power: Adjustable spring sizes 1–6
• Adjustments: Closing speed, latch speed, and backcheck
• Mounting patterns: Standard 3/4" x 12" CTC
• Fluid: All-weather, non-gumming hydraulic fluid
• Cover: Slimline metal cover
• Finish: Dark Bronze

Mounting Options (Tri-Packed)

• Regular Arm (Pull Side)
• Top Jamb (Push Side)
• Parallel Arm (Push Side) – PA bracket included

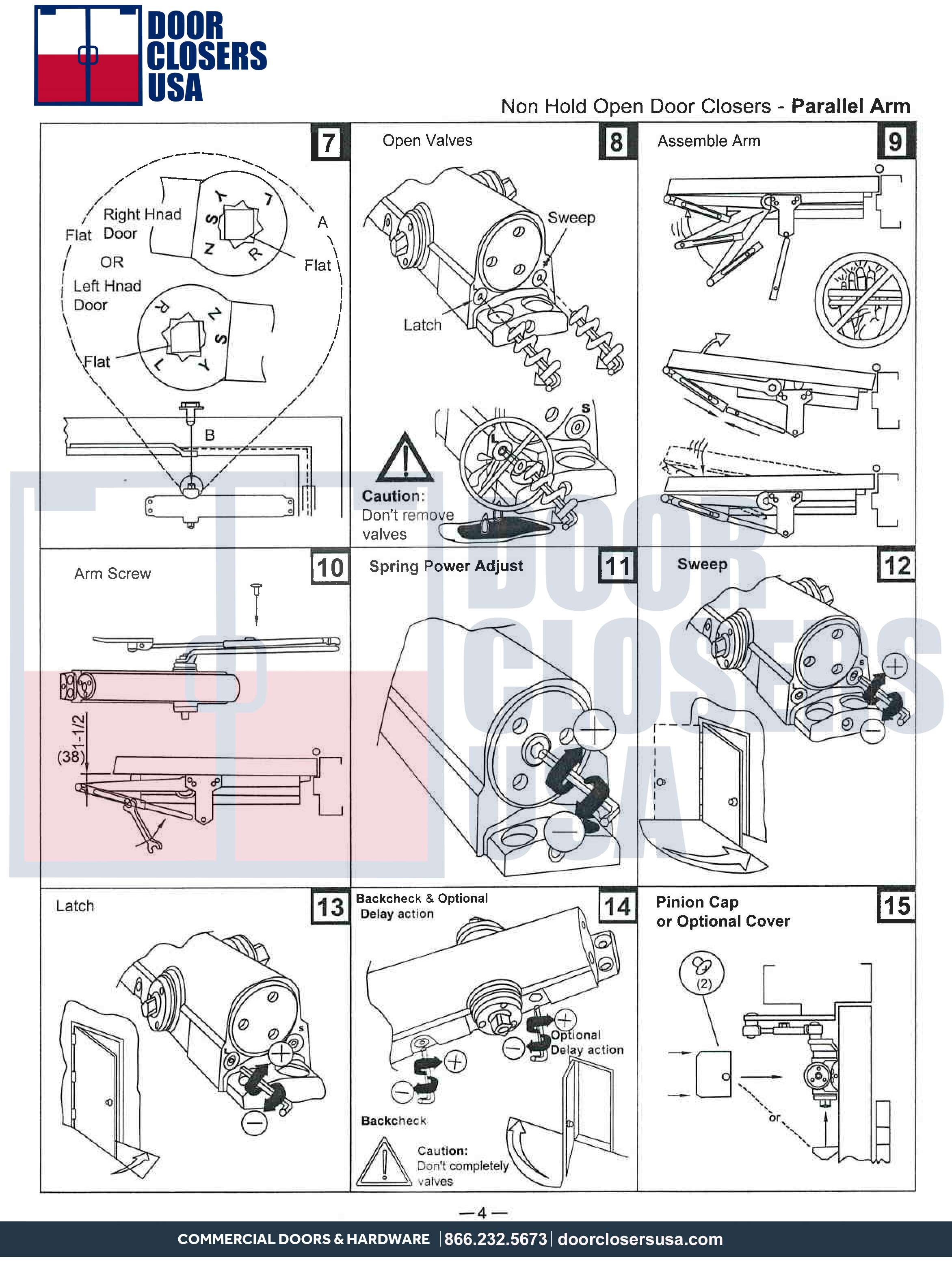

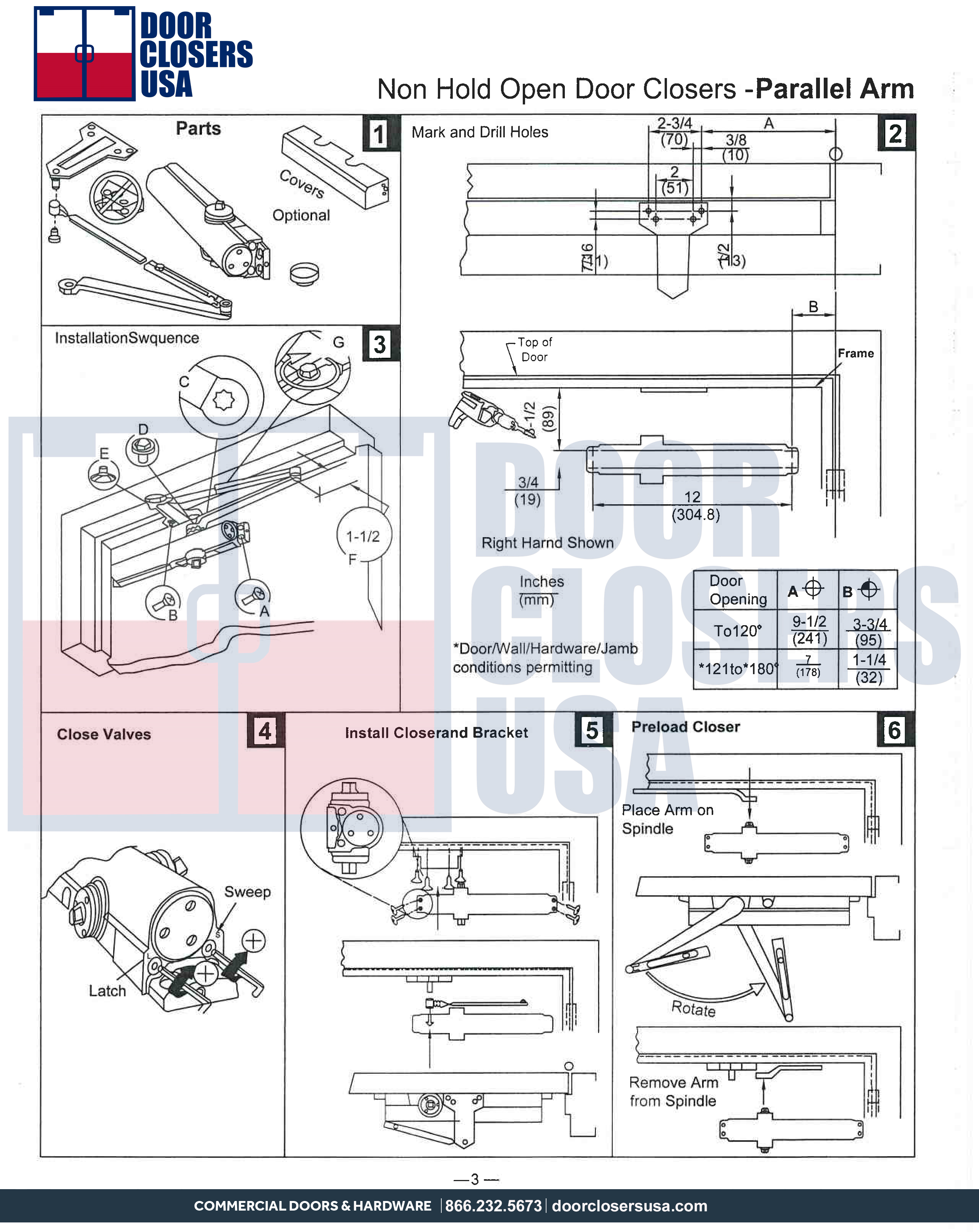

Installation Notes

• Verify handing, reveal dimensions, and frame condition prior to installation
• Use provided template and confirm fastener suitability for substrate (wood or metal)
• Adjust spring power to meet opening-force requirements; then fine-tune closing and latch speeds
• Set backcheck to cushion opening without preventing full travel

Typical Use Cases

Interior and exterior swinging doors where reliable self-closing and controlled latching are required, including fire-rated egress doors and ADA-compliant openings when adjusted accordingly.
