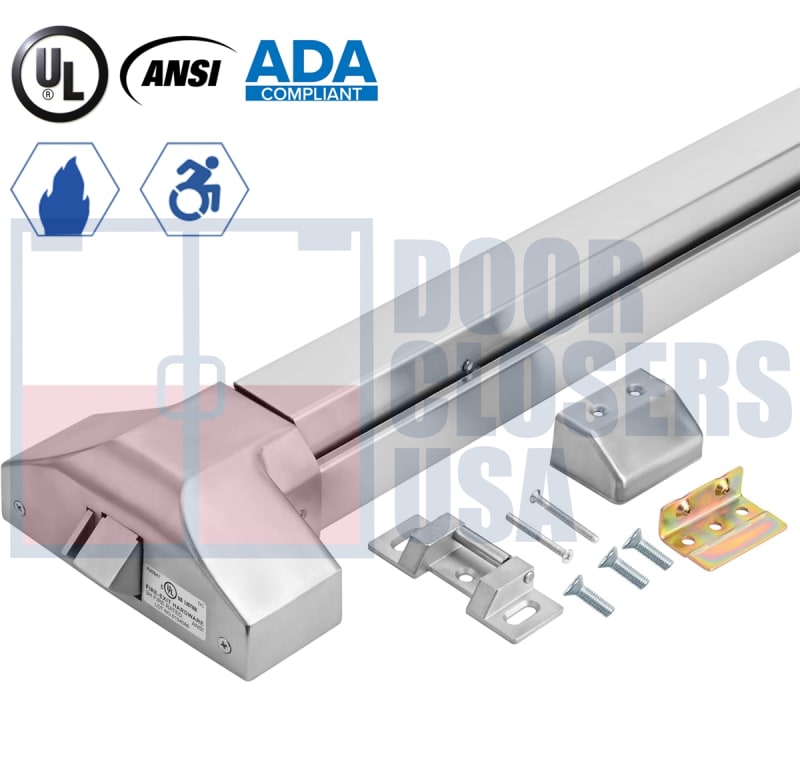

Phoenix Architectural Hardware Titan 44 Series Rim Exit Device - Model 44E0-FR-4 - Fire Rated - Fits 40" to 48" Medium Stile Hollow Metal or Wood Doors - Aluminum Finish - 2-3/4" Backset, 5/8" Stainless Steel Latch - Grade 1, UL Listed

Phoenix Architectural Hardware Titan 44 Series Rim Exit Device – Model 44E0-FR-4 is a fire-rated, ANSI Grade 1 panic device engineered for wider medium stile commercial doors requiring code-compliant emergency egress. Designed with a universal, non-handed chassis, this exit device ensures smooth operation and long-term reliability on hollow metal or wood fire-rated doors ranging from 40" to 48" wide.

Because this is a fire-rated model, the 44E0-FR-4 does not include a dogging feature, maintaining full latch engagement at all times to preserve the integrity of the fire door assembly. The device includes a robust stainless steel 5/8" throw latch with deadlatch for added security, a 2-3/4" backset for standard door prep compatibility, and requires a 4-1/2" minimum stile for proper installation.

• Model: 44E0-FR-4 (Fire-Rated Rim Exit Device)
• Door Width: Fits 40"–48"
• Door Type: Hollow metal or wood fire-rated doors
• Minimum Stile: 4-1/2"
• Latch: 5/8" stainless steel throw latch with deadlatch
• Backset: 2-3/4"
• Dogging: None (fire-rated devices cannot include dogging)
• Design: Non-handed, field reversible
• Finish: Aluminum (AL)
• Compliance: ANSI/BHMA A156.3 Grade 1
• Listings: UL Listed for fire-rated panic hardware

The Titan 44E0-FR-4 is the ideal life-safety solution for commercial facilities requiring wider fire-rated openings. With its durable construction, smooth operation, and enhanced safety features, it provides a reliable, code-compliant egress option designed for long-term performance.
