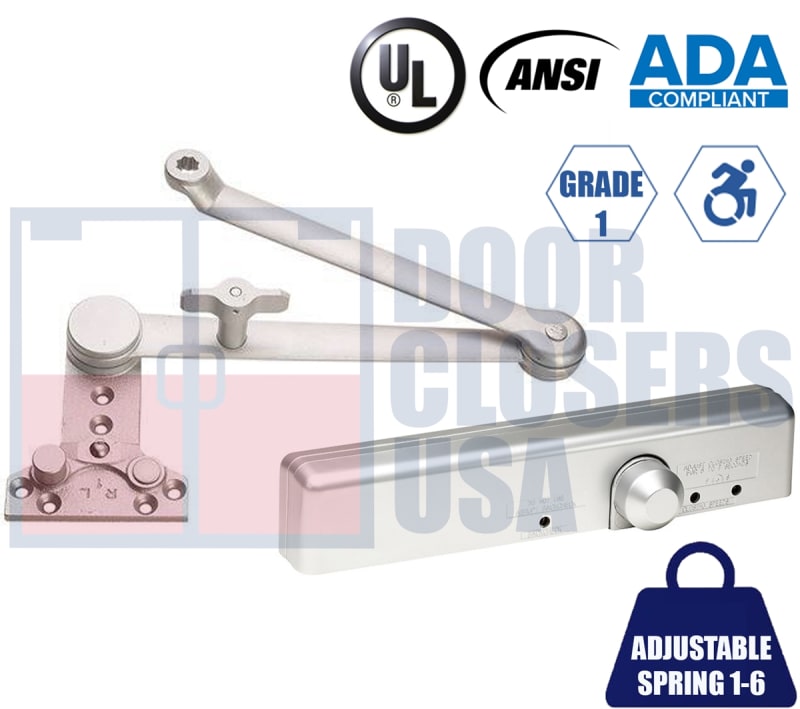

R7483 7-1/2 in. x 1 in. Door Closer - Adjustable Spring Size 1-6, Grade 1 ADA Compliant, Aluminum Alloy Body with Cushion Stop Hold Open Arm (CNS), Parallel Arm Mount Only, Aluminum Finish (AL)

R7483 7-1/2 in. x 1 in. Door Closer in Aluminum (AL) finish is a heavy-duty, adjustable closer equipped with a Cushion Stop Hold Open Arm (CNS) for enhanced door control and built-in hold-open functionality. As part of the R7483 Series, this closer is designed for demanding commercial and institutional applications requiring ADA compliance, high durability, and parallel arm installation.

The R7483 features an adjustable spring power range of sizes 1–6 for superior flexibility on interior and exterior openings. Built with a durable aluminum alloy body and a slimline cover, it delivers smooth, controlled operation suitable for high-traffic environments. The integrated Cushion Stop Hold Open Arm prevents overextension while allowing the door to hold open at a preset angle—ideal for offices, schools, and public facilities requiring accessibility and convenience.

Note: Because the closer includes a hold-open arm, it is not UL fire-rated and must be installed in parallel arm configuration only.

Features

• Series: R7483 Series – Heavy-Duty Slimline Design
• Model: R7483-7121-CNS-AL – Adjustable spring power sizes 1–6
• Cushion Stop Hold Open Arm (CNS) – prevents over-swing and holds door open at adjustable angle
• Grade 1 certified – ANSI/BHMA A156.4 compliant
• Aluminum alloy body with slimline cover
• ADA compliant for barrier-free door operation
• Three independent valves – control sweep, latch, and backcheck speeds
• Parallel Arm Mount Only – includes all hardware and brackets
• Non-handed – suitable for left- or right-hand doors
• Not UL fire-rated – for non-fire-rated openings only
• Includes wood and machine screws
• Finish: AL – Aluminum

The R7483 Door Closer combines heavy-duty performance, ADA compliance, and a convenient cushion stop hold-open arm in one slimline design. Perfect for high-use commercial and institutional openings where controlled operation and adjustable hold-open are desired.

Recommended Applications: Aluminum storefront doors, interior corridor doors, classrooms, offices, and public facilities where parallel arm mounting and hold-open functionality are required.

Finish: AL – Aluminum
