US Aluminum 250 Series Narrow Stile Storefront Door - HRSO - Clear Anodized - 1" Low E Insulated Glass

The US Aluminum 250 Series narrow stile storefront door is a premium commercial entrance door built for performance, security, and ADA compliance. This model features US Aluminum HRSO (Hinge Right Swing Out) handing, offset pivot hinges, and a hook bolt deadlock. The door is upgraded with 1" Low E tempered clear insulated glass to increase energy efficiency in modern storefront applications.

Door Only - Frame Sold Separately

This listing is for the door only. Matching storefront frames are available as a separate purchase. If you require a full entrance package with door and frame, please contact us for a custom quote.

Factory Hardware Configuration

This 250 Series door is supplied with the following hardware configuration:

• HRSO Handing (Hinge Right Swing Out) - Hinges on the right, door swings outward to the exterior.
• Offset Pivot Hinges - Heavy-duty pivots designed for commercial storefront use.
• Hook Bolt Deadlock - Narrow stile hook deadlock for enhanced security.
• Key Cylinders on Both Sides - Keyed exterior and interior for controlled access.

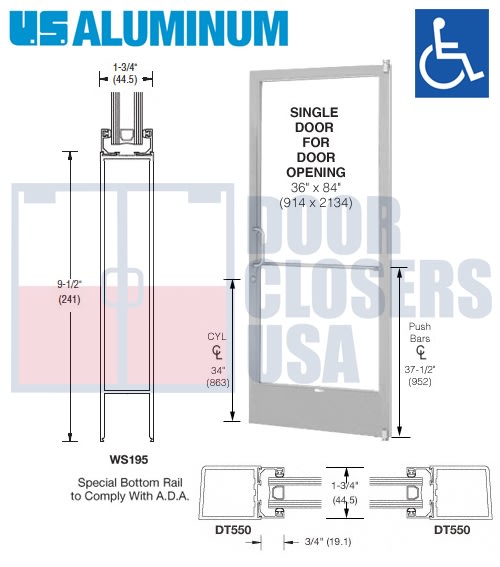

• 9-1/2" Bottom Rail - Dimensioned to meet ADA 10" high bottom rail requirements above finished floor.
• Lock Cylinder Centerline: 34" above finished floor.
• Push Bar Centerline: 37-1/2" above finished floor.

Glass Package

• 1" Low E Tempered Clear Insulated Glass (IGU) Included - Insulated Low E glass for better energy performance.
• Ships Separately and must be field glazed by the installer or glazier.

Nominal & Actual Door Size

• Nominal Size: 36" x 84"
• Actual Door Size: 35-3/4" x 83-3/16"
• Door Thickness: 1-3/4"

Clear Anodized Finish

This 250 Series door is finished in clear anodized aluminum, providing a bright, neutral appearance that pairs well with most commercial storefront systems and offers long-term durability in demanding environments.

Production Time

Standard production lead time: 4 weeks.

Typical Applications

• Retail storefronts
• Strip centers and shopping plazas
• Office and professional buildings
• Restaurants and hospitality
• Healthcare and clinic entrances
