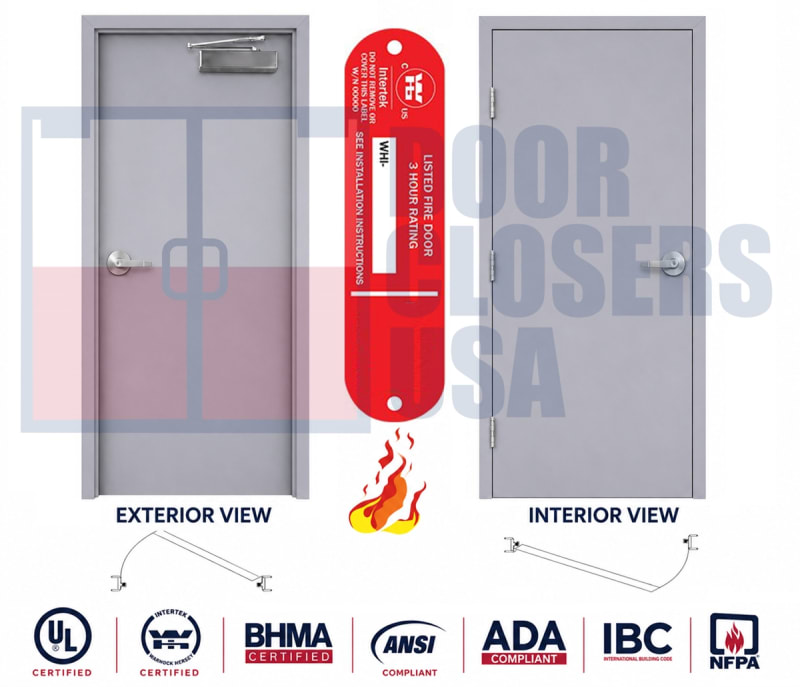

UL Listed 180 Minute Fire Rated Door Assembly

This Steel-Lite fire rated hollow metal door package is designed for commercial openings that require a 180 minute fire rating, also commonly referred to as a 3 hour fire rated door assembly. The hollow metal door and welded hollow metal frame are UL listed and fire labeled for a 3 hour rated assembly. The included commercial hardware is also labeled and UL listed for use with a 3 hour fire rated opening.

A 3 hour rated hollow metal door assembly is commonly used in commercial, industrial, institutional, and public building applications where fire separation, code compliance, and life safety requirements are critical. Always verify the required fire rating with the project plans, local building code, and Authority Having Jurisdiction before ordering.

• 180 minute fire rated hollow metal door assembly
• UL listed 3 hour rated hollow metal door
• UL listed 3 hour rated welded hollow metal frame
• Fire labeled door and frame
• UL listed and labeled commercial hardware included
• Designed for commercial fire rated wall applications
• Final compliance depends on proper installation and local AHJ approval

Built for Fire Rated Exterior Commercial Wall Applications

This 180 minute fire rated exterior hollow metal door package is designed for commercial exterior openings where fire rating, durability, security, weather resistance, and professional appearance are important. It is ideal for warehouses, schools, churches, retail buildings, restaurant back-of-house openings, industrial facilities, utility rooms, mechanical rooms, service entrances, commercial offices, and exterior pedestrian entry doors where a 3 hour rated assembly is required.

Choose the Correct Fire Rated Frame Type for Your Project

This fire rated exterior hollow metal door package allows you to select the UL listed welded frame type that best matches your wall condition and construction method. Whether you are replacing an existing opening or working on new construction, Steel-Lite offers multiple welded frame configurations to help ensure proper installation and long-term performance.

• Existing Masonry Wall Opening: UL listed welded punch and dimple frame designed for installation into existing concrete block, CMU, brick, or masonry openings. Customer supplies lag screws.
• Existing Wood or Metal Stud Wall Opening: UL listed welded punch and dimple frame designed for installation into existing framed wall openings. Customer supplies lag screws.
• New Masonry Wall Opening Not Yet Constructed: UL listed welded frame with mortar-in anchors designed to be installed as the masonry wall is being built.
• New Steel Stud Wall Opening: UL listed welded frame with multi-purpose strap anchors designed for installation into new steel stud wall construction.
• New Wood Stud Wall Opening: UL listed welded frame with multi-purpose strap anchors designed for installation into new wood stud wall construction.

Selecting the correct frame type helps ensure proper anchoring, structural support, fire rated assembly compatibility, and a professional finished opening.

Flush Fire Rated Door Design - No Window

This package includes a flush hollow metal steel door with no glass window. The flush door design provides maximum steel surface area while offering privacy, security, durability, fire rated performance, and a clean commercial appearance. This makes it a strong choice for fire rated commercial openings where visibility is not required and a solid steel door is preferred.

• Flush hollow metal fire rated door with no window
• No glass opening
• Maximum privacy and security
• Maximum solid steel surface area
• Designed for 180 minute fire rated applications
• Clean professional commercial appearance
• Ideal for warehouses, schools, churches, retail back doors, offices, industrial buildings, and public facilities

Why Contractors Choose Steel-Lite Fire Rated Door Packages

• Complete 180 minute fire rated hollow metal door package from one source
• No need to separately source the fire rated door, welded frame, closer, lock, hinges, threshold, sweep, and gasket
• UL listed 3 hour rated hollow metal door and frame
• Labeled and UL listed commercial hardware included
• Designed for exterior commercial wall applications requiring a 3 hour fire rating
• Multiple welded frame options for different wall conditions
• 18 gauge galvannealed steel door for commercial durability
• Flush hollow metal door with no window
• Factory reinforced for hinges, lock, and door closer
• Includes Grade 1 commercial lever lock and Grade 1 heavy duty commercial door closer
• Includes exterior sealing components for a more complete opening
• Made in USA with 3-4 week production

Door Construction

• Nominal Door Size: 36" x 84"
• Actual Door Slab Size: 35-3/4" Wide x 83-1/8" Tall
• Door Type: 180 minute fire rated exterior hollow metal commercial steel door
• Fire Rating: 180 minutes / 3 hour fire rated assembly
• Listing: UL listed and fire labeled
• Door Design: Flush hollow metal door
• Glass Window: None
• Door Skins: 18 gauge A60 galvannealed steel
• Finish: Rust-inhibiting gray primer, paint-ready for field finishing
• Core: Fire rated core suitable for 180 minute labeled assembly
• Reinforcements: Factory reinforced hinge, lock, and closer locations
• Application: Fire rated exterior commercial openings in masonry, wood stud, or metal stud wall conditions

UL Listed Welded Frame Details

• Frame Type: UL listed welded hollow metal frame
• Fire Rating: 3 hour rated frame assembly
• Frame Label: UL listed and fire labeled when ordered as a rated assembly
• Frame Options: Existing masonry punch and dimple, existing wood or metal stud punch and dimple, new masonry mortar-in anchors, new steel stud multi-purpose strap anchors, or new wood stud multi-purpose strap anchors
• Net Inside Frame Dimensions: 36" Wide x 84" Tall
• Net Outside Frame Dimensions: 40" Wide x 86" Tall
• Frame Finish: Gray primer, paint-ready for field finishing
• Installation Use: Fire rated exterior commercial wall openings, replacement openings, remodels, new masonry construction, new steel stud construction, and new wood stud construction

Required Opening Dimensions

• Nominal Door Opening: 36" Wide x 84" Tall
• Actual Door Slab Size: 35-3/4" Wide x 83-1/8" Tall
• Net Inside Frame Dimensions: 36" Wide x 84" Tall
• Net Outside Frame Dimensions: 40" Wide x 86" Tall
• Recommended Rough Opening: 40-1/2" Wide x 86-1/4" Tall

Grade 1 Heavy Duty Commercial Door Closer Included

This Steel-Lite 180 minute fire rated hollow metal door package includes a Grade 1 heavy duty commercial door closer with regular arm. The closer is UL listed and labeled for use with a 3 hour fire rated door assembly when properly installed in accordance with the listing, manufacturer instructions, and local code requirements.

The included commercial door closer helps the door close smoothly after each use while reducing wear on the door, welded frame, hinges, and locking hardware. Self-closing hardware is an important part of many fire rated door openings because the door must properly close and latch to help maintain the intended fire rated protection of the assembly.

• Grade 1 heavy duty commercial door closer included
• Regular arm configuration
• UL listed and labeled for rated assembly use
• Designed for demanding commercial fire rated applications
• Helps provide smooth and controlled door closing
• Helps reduce wear on the door, frame, hinges, and lockset
• Suitable for high-traffic commercial environments
• ANSI/BHMA Certified

What Comes With This 180 Minute Fire Rated Hollow Metal Door Package

• 1 - 35-3/4" x 83-1/8" 180 Minute Fire Rated Flush Steel Door: UL listed hollow metal commercial door with fire rated core, flush no-window design, fire label, and reinforced hinge, lock, and closer locations.
• 1 - UL Listed 3 Hour Rated Welded Hollow Metal Frame: Select from existing masonry punch & dimple, existing wood or metal stud punch & dimple, new masonry mortar-in anchor, new steel stud multi-purpose strap anchor, or new wood stud multi-purpose strap anchor frame configurations to match your wall condition and construction method.
• 1 - Grade 1 Heavy Duty Commercial Door Closer with Regular Arm: UL listed commercial hydraulic closer designed for reliable door control in demanding fire rated exterior applications. Helps provide smooth and controlled door closing while supporting long-term durability in commercial environments.
• 3 - UL Listed Ball Bearing Commercial Door Hinges: Heavy duty ball bearing hinges designed for smooth operation and long-term durability on commercial hollow metal fire rated doors.
• 1 - UL Listed Grade 1 Commercial Lever Lock: Heavy duty cylindrical lever lock designed for commercial fire rated door applications.
• 1 - ADA Compliant Saddle Threshold: 1/2" tall x 5" depth commercial saddle threshold for an accessible transition when properly installed. UL Listed, ADA Compliant, and ANSI/BHMA Certified.
• 1 - Bottom Brush Door Sweep: Commercial bottom brush sweep designed to help reduce air, light, dust, drafts, and pest infiltration at the bottom of the door. UL Listed and ANSI/BHMA Certified.
• 1 - Screw-On Door Frame Gasket Seal Set: Commercial perimeter frame gasket designed to help seal gaps around the door frame for a tighter exterior opening. UL Listed and ANSI/BHMA Certified.
• Commercial Mounting Hardware: Includes required fasteners for the supplied commercial hardware components. Lag screws for punch and dimple frame options are supplied by others.

Exterior Sealing Components Included

Because this package is designed for exterior wall applications, it includes sealing components not typically used on interior door packages. The ADA compliant saddle threshold, bottom brush door sweep, and screw-on frame gasket seal help create a more complete exterior opening by reducing drafts, light gaps, dust, and pest infiltration.

• ADA compliant 1/2" tall x 5" depth saddle threshold
• Bottom brush door sweep
• Screw-on frame gasket seal set
• Helps improve the finished exterior opening
• Helps reduce air, light, dust, drafts, and pest infiltration

Best Applications

• 3 hour fire rated commercial door openings
• Fire rated exterior hollow metal doors
• Commercial exterior doors
• Warehouse personnel doors
• School exterior openings
• Church exterior doors
• Retail back doors
• Restaurant back-of-house exterior doors
• Industrial facility doors
• Mechanical room doors
• Utility room doors
• Medical office exterior doors
• Office building exterior openings
• Public building entrances
• Property management replacement doors
• Commercial remodeling projects

Why This Fire Rated Package Stands Out

This is not just a hollow metal door slab. It is a complete 180 minute fire rated commercial door package designed around a UL listed flush steel door and UL listed welded hollow metal frame. By combining the fire rated door, 3 hour rated welded frame, Grade 1 heavy duty commercial door closer with regular arm, ball bearing hinges, Grade 1 commercial lever lock, ADA saddle threshold, bottom brush sweep, screw-on frame gasket, and mounting hardware into one matched package, Steel-Lite helps simplify ordering and reduce the risk of missing, incorrect, or incompatible parts.

For contractors, maintenance teams, and property managers, this means fewer purchase orders, fewer product compatibility questions, and a cleaner, more professional finished exterior fire rated opening.

Compliance & Hardware Compatibility

• Door is UL listed and fire labeled for a 180 minute / 3 hour fire rated assembly
• Frame is UL listed and fire labeled for a 3 hour rated assembly
• Hardware is labeled and UL listed for use in a 3 hour rated assembly
• Factory reinforced for commercial hinges, locks, and door closers
• Grade 1 commercial lever lock included
• Grade 1 heavy duty commercial door closer with regular arm included
• Threshold is UL Listed, ADA Compliant, and ANSI/BHMA Certified
• Bottom brush door sweep is UL Listed and ANSI/BHMA Certified
• Screw-on frame gasket seal is UL Listed and ANSI/BHMA Certified
• Compatible with common ANSI/BHMA commercial hardware applications
• ADA accessible opening compatibility when properly installed with compliant hardware, proper opening force, threshold height, and field conditions
• Final compliance depends on the complete installed assembly and local AHJ requirements

Note: Final fire rating and code compliance depend on the complete installed assembly, installation method, wall condition, floor condition, field modifications, hardware adjustment, door closing and latching performance, threshold installation, fire label requirements, and approval by the local Authority Having Jurisdiction.
